09400030 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ZINC BODY, SCREW, 3A

Part	Housing Color	Size	Style	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Housing Finish	Lock Location	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Thread Size
HARTING 09400030311	Black	3 A	Bottom Entry	Base - Panel Mount	125 °C	-40 C	Zinc Die Cast	Chromate	Screw Locks on Hood

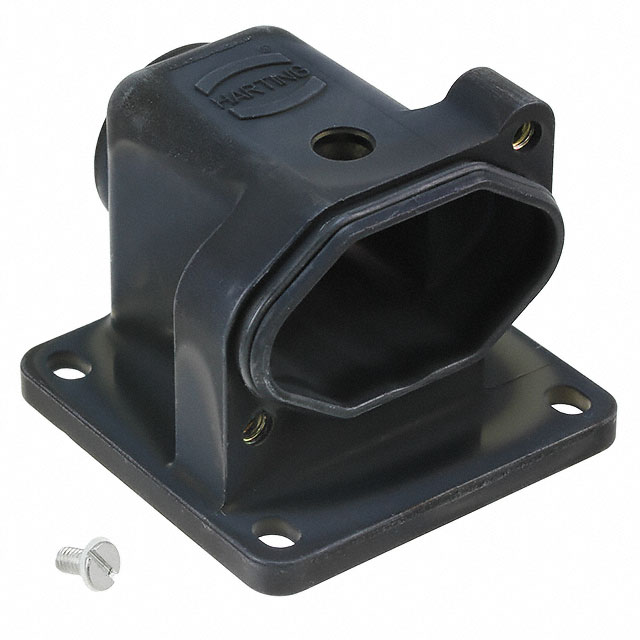

HARTING 09400030950	Black	3 A	Side Entry	Base - Panel Mount 90°	125 °C	-40 C	Zinc Die Cast	Chromate	Screw Locks on Hood	2.008 "	1.634 in	51 mm	51 mm	41.5 mm	2.008 "

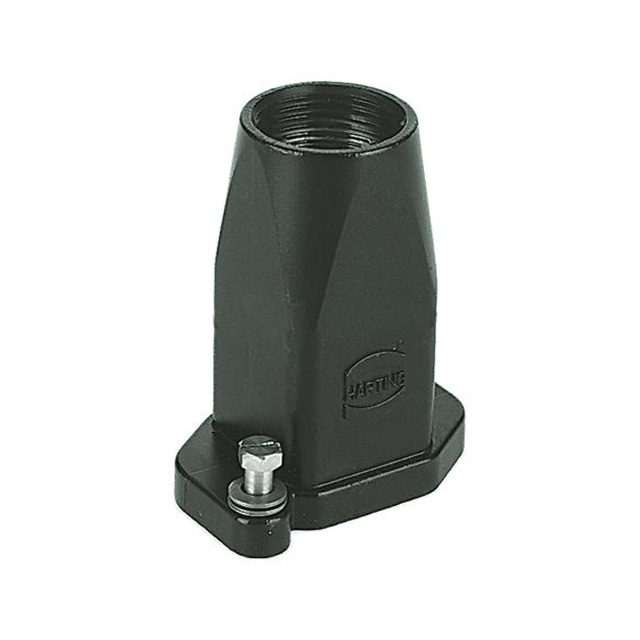

HARTING 09400030402	Black	3 A	Top Entry	Hood	125 °C	-40 C	Zinc Die Cast	Chromate	Screw Locks on Hood	1.276 "	2.15 in	32.4 mm	45.4 mm	54.6 mm	1.787 in	PG13.5

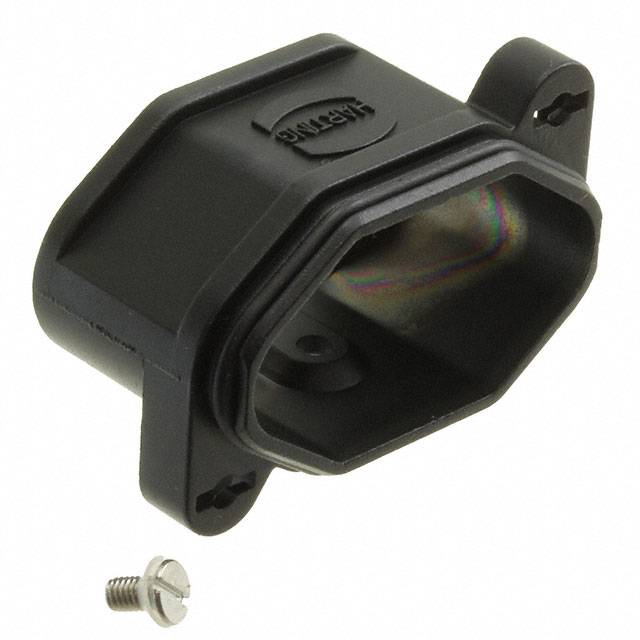

HARTING 09400030301	Black	3 A	Bottom Entry	Base - Panel Mount	125 °C	-40 C	Zinc Die Cast	Chromate	Screw Locks on Hood

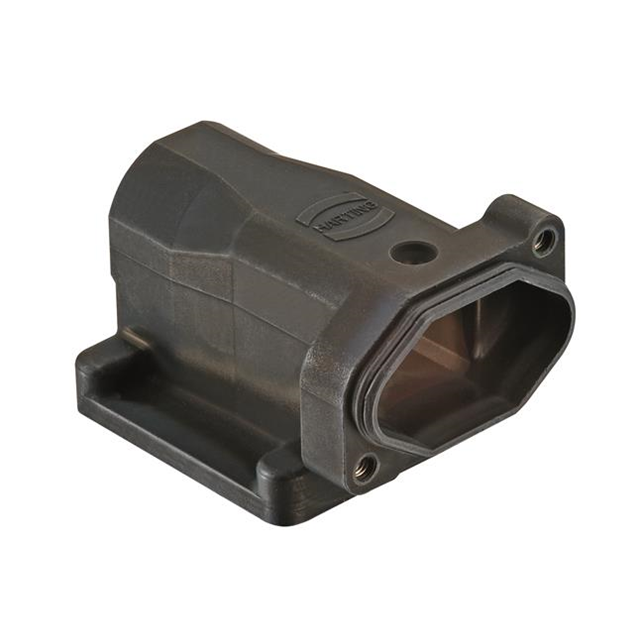

HARTING 09400030953	Black	3 A	Side Entry	Base - Panel Mount 90°	125 °C	-40 C	Zinc Die Cast	Chromate	Screw Locks on Hood
