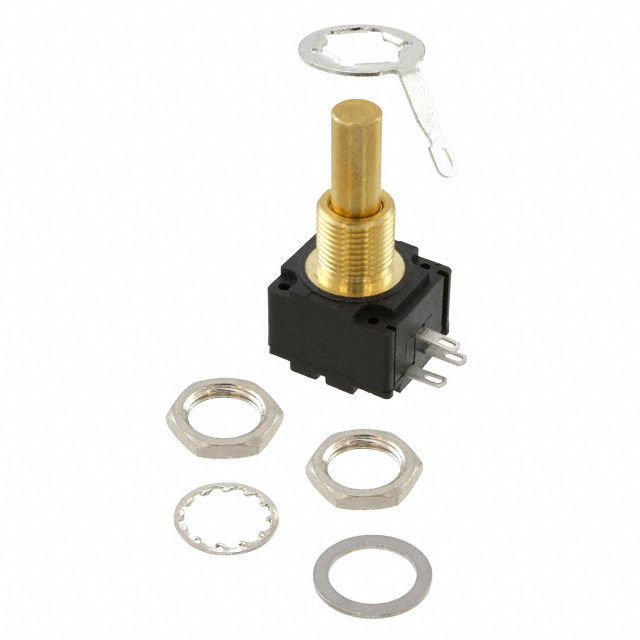

95A1D Series
Manufacturer: Bourns Inc.
Beta
⌘K
POT 500K OHM 1/4W PLASTIC LOG
| Part | Size - Body [x] | Size - Body [x] | Size - Body [y] | Size - Body [y] | Actuator Type | Adjustment Type | Number of Gangs | Power (Watts) | Power (Watts) | Termination Style | Mounting Type | Rotation | Number of Turns | Tolerance | Temperature Coefficient | Bushing Thread | Resistive Material | Taper | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Actuator Length [x] | Actuator Length [x] | Resistance (Ohms) | Built in Switch | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | Round | User Defined | 1 | 0.25 W | 0.25 W | Solder Lug | Panel Mount | 300 ░ | 1 | 20 % | 1000 ppm/°C | 3/8-32 | Conductive Plastic | Logarithmic | 6 mm | 0.236 in | 0.875 in | 22.23 mm | 500 kOhms | None | |
 Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | Round | User Defined | 1 | 0.25 W | 0.25 W | Solder Lug | Panel Mount | 300 ░ | 1 | 20 % | 1000 ppm/°C | 3/8-32 | Conductive Plastic | Logarithmic | 6 mm | 0.236 in | 0.875 in | 22.23 mm | 250000 Ohms | None | |
 Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | Slotted | User Defined | 1 | 2 W | Solder Lug | Panel Mount | 300 ░ | 1 | 10 % | 150 ppm/°C | 3/8-32 | Cermet | Linear | 6.35 mm | 0.25 in | 0.875 in | 22.23 mm | 5 kOhms | None | ||
 Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | Knurled and Slotted | User Defined | 1 | 0.25 W | 0.25 W | Solder Lug | Panel Mount | 300 ░ | 1 | 20 % | 1000 ppm/°C | 3/8-32 | Conductive Plastic | Logarithmic | 5.97 mm | 0.235 in | 0.685 in | 17.4 mm | None | 25 kOhms | |
 Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | Knurled and Slotted | User Defined | 1 | 0.25 W | 0.25 W | Solder Lug | Panel Mount | 300 ░ | 1 | 20 % | 1000 ppm/°C | 3/8-32 | Conductive Plastic | Logarithmic | 5.97 mm | 0.235 in | 0.685 in | 17.4 mm | None | 50 kOhms |
