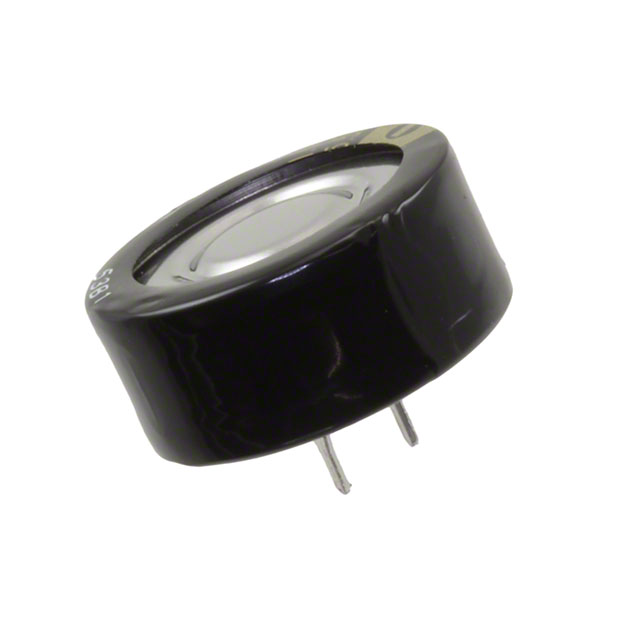

EEC-RF Series

Catalog

GOLD CAPACITOR,5.5VDC,1F,21.5MM,COIN,AS LOW AS -40 ROHS COMPLIANT: YES

Part	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Lead Spacing	Lead Spacing	Mounting Type	Tolerance [Max]	Tolerance [Min]	Capacitance	Termination	Lifetime @ Temp.

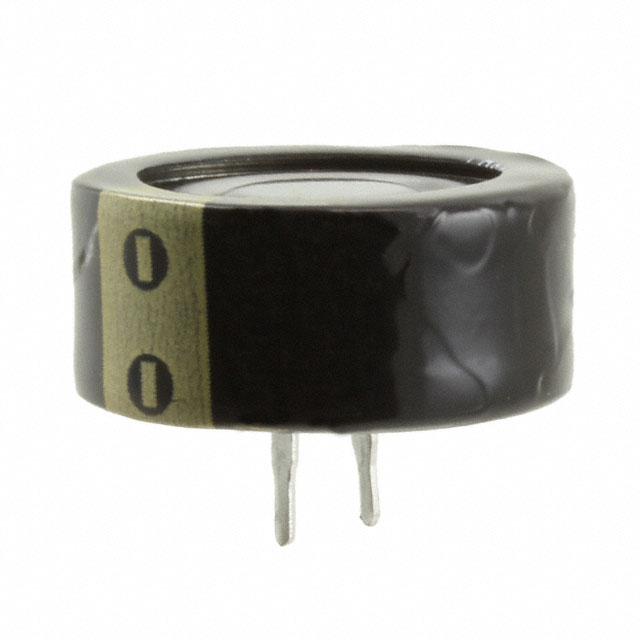

Panasonic Electronic Components EEC-RF0H105N	40 Ohms	21.5 mm	0.846 in	5.5 V	0.374 "	9.5 mm	85 °C	-40 C	Radial	0.197 "	5 mm	Through Hole	80 %	-20 %	1 F	PC Pins	2000 Hrs
Panasonic Electronic Components EEC-RF0H104N	40 Ohms	13.5 mm	0.531 in	5.5 V	0.374 "	9.5 mm	85 °C	-40 C	Radial	0.197 "	5 mm	Through Hole	80 %	-20 %	0.1 F	PC Pins	2000 Hrs
Panasonic Electronic Components EEC-RF0H684N	40 Ohms	21.5 mm	0.846 in	5.5 V	0.374 "	9.5 mm	85 °C	-40 C	Radial	0.197 "	5 mm	Through Hole	80 %	-20 %	680 mF	PC Pins	2000 Hrs
