052901 Series

Manufacturer: Molex

Catalog

CONN RCPT 60POS SMD GOLD

Part	Mounting Type	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Features	Connector Type	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mated Stacking Heights

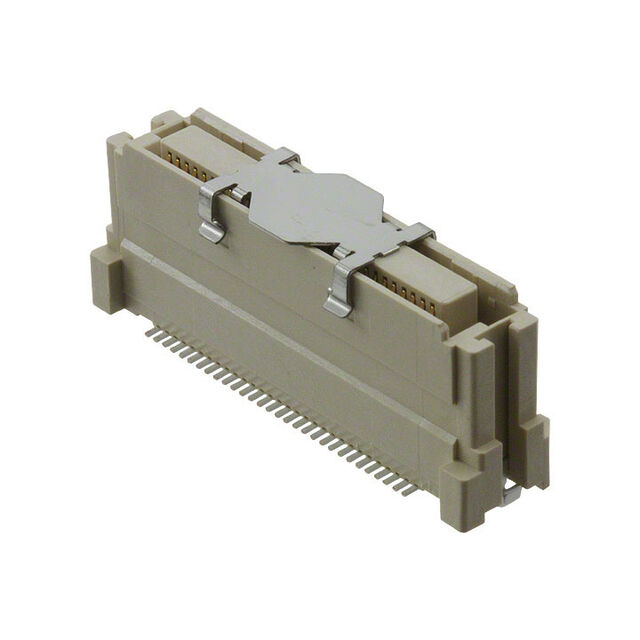

Molex 0529010674	Surface Mount	0.64 mm	0.025 in	10 mm	0.394 in	Board Guide Solder Retention	Center Strip Contacts Receptacle	60	Gold	10 Áin	0.25 Ám	2	11 mm 12 mm 13 mm 14 mm 15 mm 16 mm
Molex 0529010804

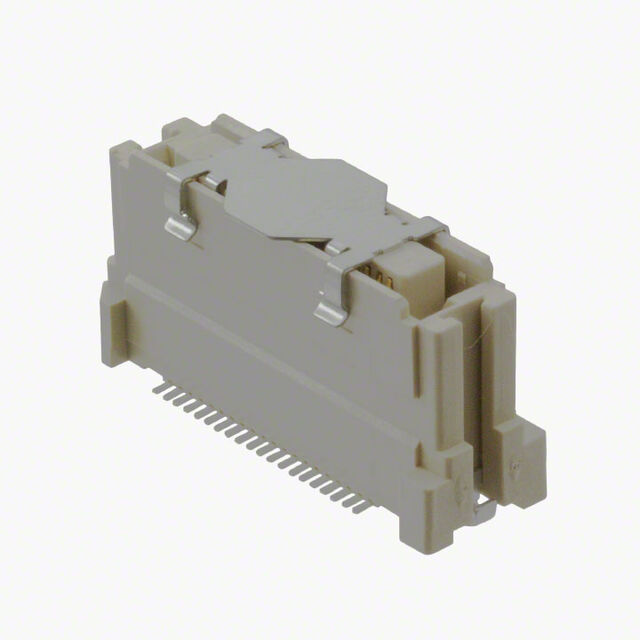

Molex 0529010474	Surface Mount	0.64 mm	0.025 in	10 mm	0.394 in	Board Guide Solder Retention	Center Strip Contacts Receptacle	40	Gold	10 Áin	0.25 Ám	2	11 mm 12 mm 13 mm 14 mm 15 mm 16 mm

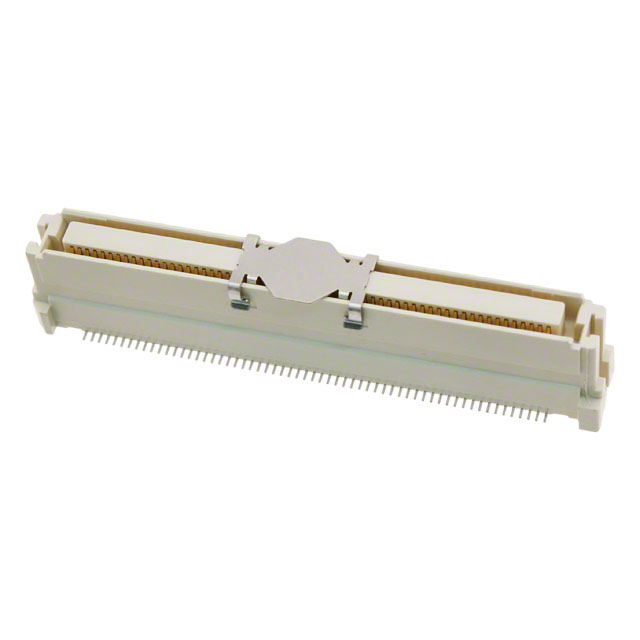

Molex 0529011274	Surface Mount	0.64 mm	0.025 in	10 mm	0.394 in	Board Guide Solder Retention	Center Strip Contacts Receptacle	120	Gold	10 Áin	0.25 Ám	2	11 mm 12 mm 13 mm 14 mm 15 mm 16 mm

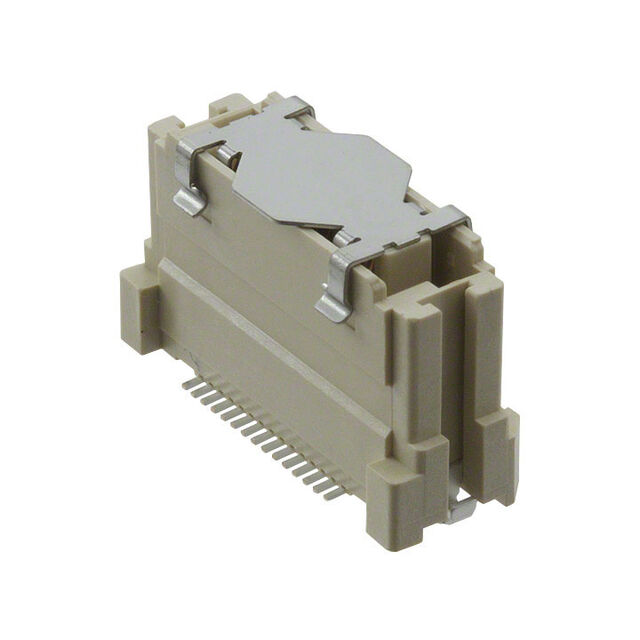

Molex 0529010374	Surface Mount	0.64 mm	0.025 in	10 mm	0.394 in	Board Guide Solder Retention	Center Strip Contacts Receptacle	30	Gold	10 Áin	0.25 Ám	2	11 mm 12 mm 13 mm 14 mm 15 mm 16 mm

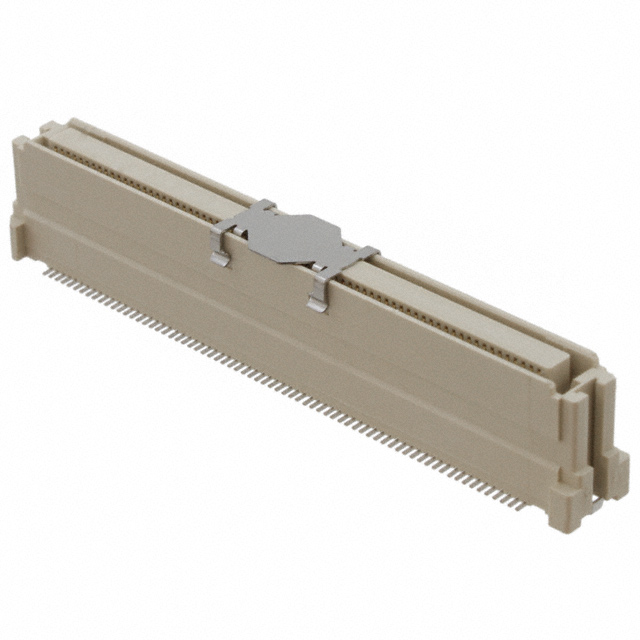

Molex 0529011474	Surface Mount	0.64 mm	0.025 in	10 mm	0.394 in	Board Guide Solder Retention	Center Strip Contacts Receptacle	140	Gold	10 Áin	0.25 Ám	2	11 mm 12 mm 13 mm 14 mm 15 mm 16 mm
Molex 0529011674	Surface Mount	0.64 mm	0.025 in	10 mm	0.394 in	Board Guide Solder Retention	Center Strip Contacts Receptacle	160	Gold	10 Áin	0.25 Ám	2	11 mm 12 mm 13 mm 14 mm 15 mm 16 mm
Molex 0529010974	Surface Mount	0.64 mm	0.025 in	10 mm	0.394 in	Board Guide Solder Retention	Center Strip Contacts Receptacle	90	Gold	10 Áin	0.25 Ám	2	11 mm 12 mm 13 mm 14 mm 15 mm 16 mm
