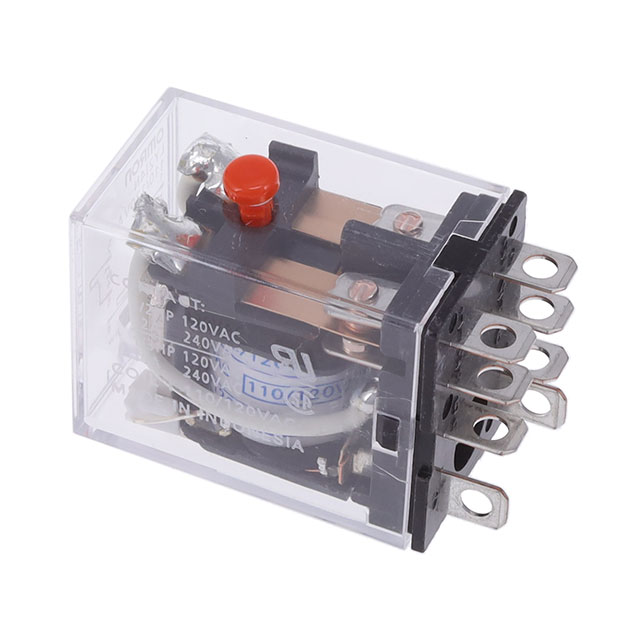

LY2I4N AC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 220V
| Part | Switching Voltage | Operate Time | Approval Agency | Features | Contact Material | Must Release Voltage | Contact Form | Coil Voltage | Must Operate Voltage | Coil Type | Contact Rating (Current) | Coil Resistance | Termination Style | Mounting Type | Coil Current | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Relay Type | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 125 VDC 250 VAC | 25 ms | CE CSA TUV UR | Lighted Indicator Test Button | Silver Alloy | 66 VAC | DPDT (2 Form C) | 220 VAC/DC | 176 VAC | Non Latching | 10 A | 12.95 kOhms | Plug In | Socketable | 5.8 mA | 1250 W 2500 VA | 55 °C | -25 °C | General Purpose | 25 ms |
Omron Electronics Inc-EMC Div | 125 VDC 250 VAC | 25 ms | CE CSA TUV UR | Lighted Indicator Test Button | Silver Alloy | 72 VAC/DC | DPDT (2 Form C) | 240 VAC | 192 VAC | Non Latching | 10 A | 18.79 kOhms | Plug In | Socketable | 4.6 mA | 1250 W 2500 VA | 55 °C | -25 °C | General Purpose | 25 ms |
 Omron Electronics Inc-EMC Div | 125 VDC 250 VAC | 25 ms | CE CSA TUV UR | Lighted Indicator Test Button | Silver Alloy | 36 VAC | DPDT (2 Form C) | 120 VAC | 96 VAC | Non Latching | 10 A | 4.43 kOhms | Plug In | Socketable | 9.2 mA | 1250 W 2500 VA | 55 °C | -25 °C | General Purpose | 25 ms |
