750327 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

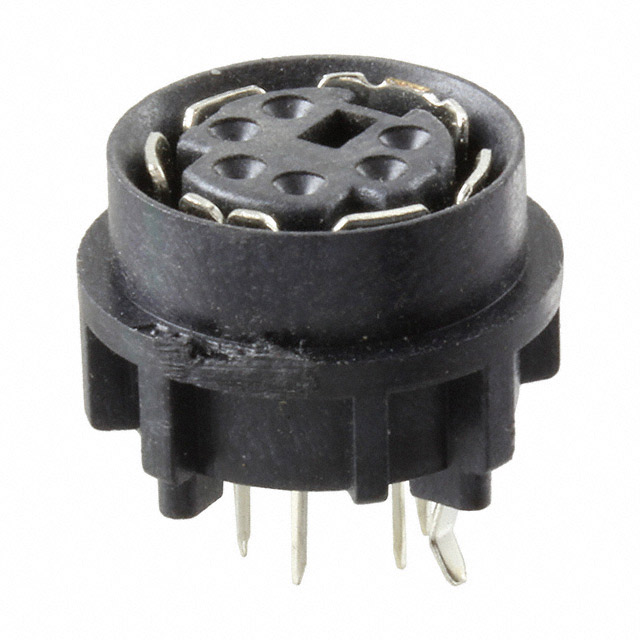

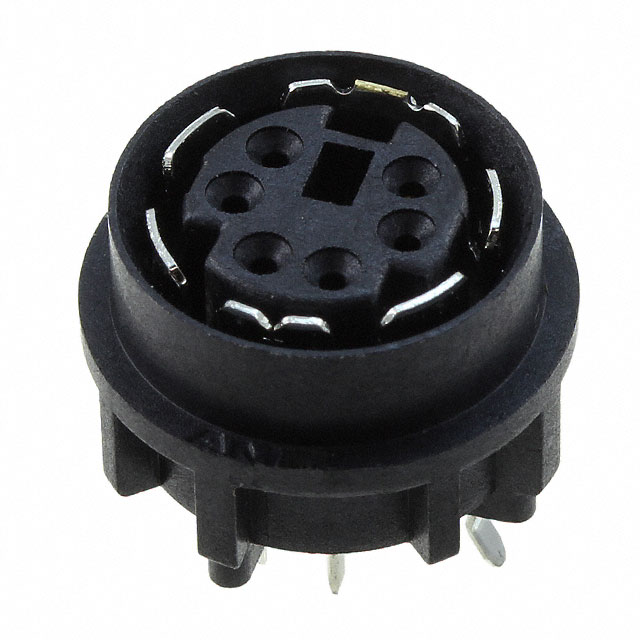

CONN RCPT FMALE MINI DIN 6P SLDR
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Applications | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Mounting Feature | Shell Size - Insert | Primary Material | Shell Material | Number of Positions | Features | Termination | Mounting Type | Orientation | Voltage Rating | Material Flammability Rating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.76 Ám | 30 Áin | Copper Alloy | Audio Video | Receptacle Female Sockets | -55 C | 105 ░C | Push-Pull | Flange | Mini DIN | Metal | Brass | 6 | Board Lock | Solder | Panel Mount Through Hole | Keyed | 30 VDC | UL94 V-0 | Gold |
 TE Connectivity AMP Connectors | 0.38 µm | 15 µin | Copper Alloy | Audio Video | Receptacle Female Sockets | -55 C | 105 ░C | Push-Pull | Flange | Mini DIN | Metal | Brass | 6 | Board Lock | Solder | Panel Mount Through Hole | Keyed | 30 VDC | UL94 V-0 | Gold |
