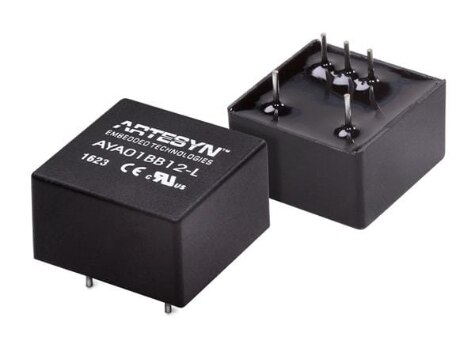

AYA01BB Series
Isolated DC/DC Converters - Through Hole 3W 9-18Vin +/-12V@0.125A Dual
Manufacturer: ARTESYN / Advanced Energy
Catalog
Isolated DC/DC Converters - Through Hole 3W 9-18Vin +/-12V@0.125A Dual
Beta
⌘K
Isolated DC/DC Converters - Through Hole 3W 9-18Vin +/-12V@0.125A Dual
Isolated DC/DC Converters - Through Hole 3W 9-18Vin +/-12V@0.125A Dual
Isolated DC/DC Converters - Through Hole 3W 9-18Vin +/-12V@0.125A Dual
| Part | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Efficiency | Voltage - Output 2 | Type | Current - Output (Max) | Current - Output (Max) | Power (Watts) | Voltage - Input (Max) [Max] | Package / Case | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Isolation | Number of Outputs | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | ITE (Commercial) | 85 °C | -40 °C | 12 V | 86 % | -12 V | Isolated Module | 125 mA | 125 mA | 3 W | 18 V | 7-DIP Module 5 Leads | 9 V | 0.55 in | 14 mm | 0.31 in | 8 mm | 0.55 in | 14 mm | 1.5 kV | 2 | SCP | Through Hole |
ARTESYN / Advanced Energy | ITE (Commercial) | 85 °C | -40 °C | 12 V | 86 % | -12 V | Isolated Module | 125 mA | 125 mA | 3 W | 36 V | 7-DIP Module 5 Leads | 18 V | 0.55 in | 14 mm | 0.31 in | 8 mm | 0.55 in | 14 mm | 1.5 kV | 2 | SCP | Through Hole |
