2286546 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

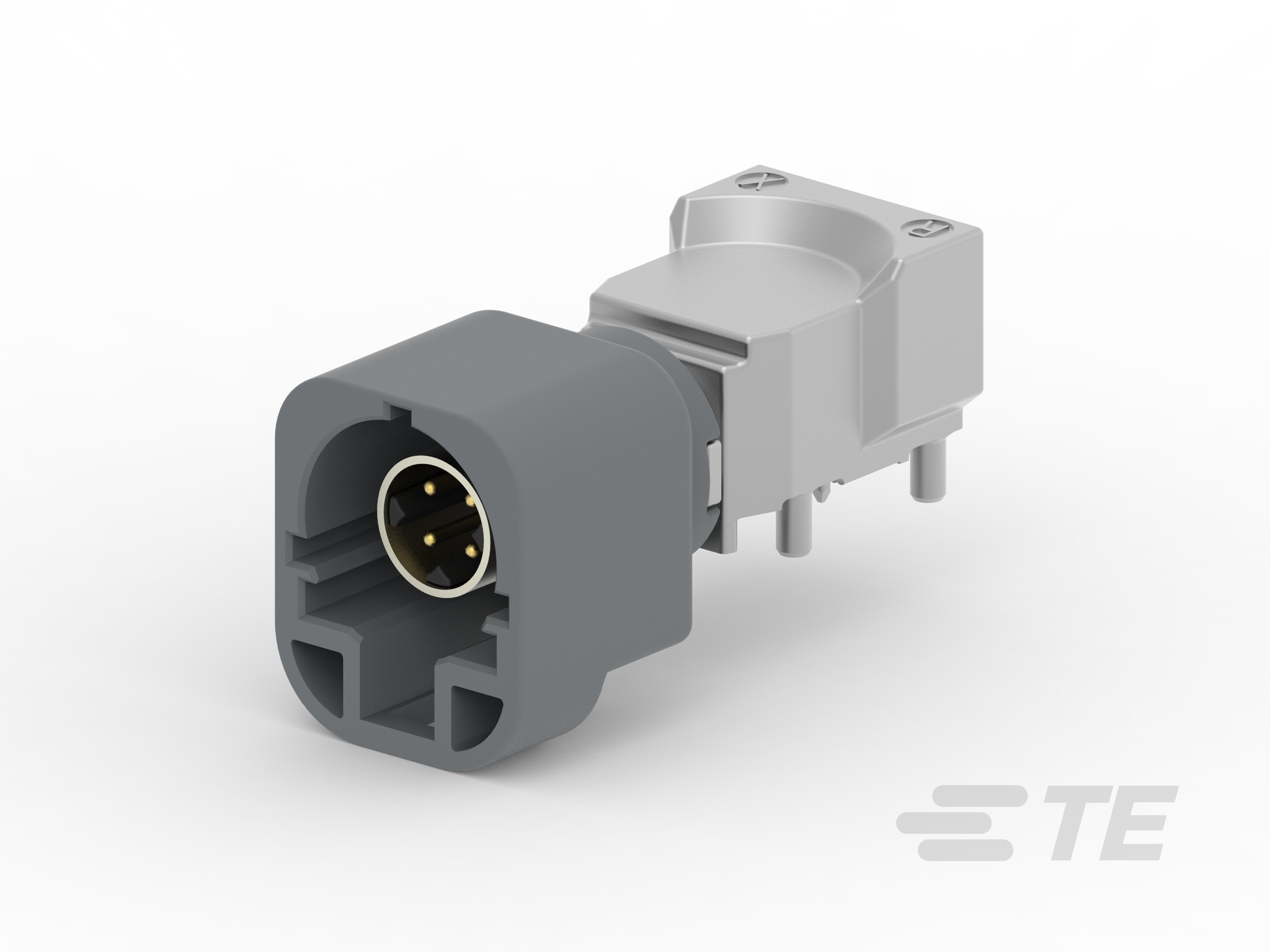

HSD,HDR ASSY,90DEG,COD G
| Part | Impedance | Body Finish | Number of Ports | Connector Style | Connector Type | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Frequency - Max [Max] | Contact Termination | Mounting Type | Body Material | Dielectric Material | Voltage Rating | Center Contact Plating | Shield Termination | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 100 Ohms | Tin | 1 | Fakra HSD® Quadraxial | Male Pin Plug | Latch Lock | -40 °C | 105 ░C | Board Guide Code G | 3 GHz | Solder | Through Hole Right Angle | Glass Filled Nylon 6T Polyamide (PA6T) | Glass Filled Nylon Polyamide (PA) | 60 VDC | Gold | Solder | Gray |
