146509 Series

Catalog

CONN HDR 12POS 0.1 STACK T/H

Part	Length - Overall Pin [x]	Length - Overall Pin [x]	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Number of Positions	Number of Rows	Color	Length - Tail [x]	Length - Tail [x]	Termination	Row Spacing [x]	Row Spacing
TE Connectivity Raychem Cable Protection 5-146509-6	1.43 in	36.322 mm	Through Hole	0.38 Ám	15 Áin	2.54 mm	0.1 in	0.33 in	8.382 mm	Gold	1 in	25.4 mm	12	2	Black	0.1 "	2.54 mm	Solder	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection 2-146509-4	1.43 in	36.322 mm	Through Hole	0.38 Ám	15 Áin	2.54 mm	0.1 in	0.33 in	8.382 mm	Gold	1 in	25.4 mm	48	2	Black	0.1 "	2.54 mm	Solder	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection 2-146509-0	1.43 in	36.322 mm	Through Hole	0.38 Ám	15 Áin	2.54 mm	0.1 in	0.33 in	8.382 mm	Gold	1 in	25.4 mm	40	2	Black	0.1 "	2.54 mm	Solder	0.1 in	2.54 mm

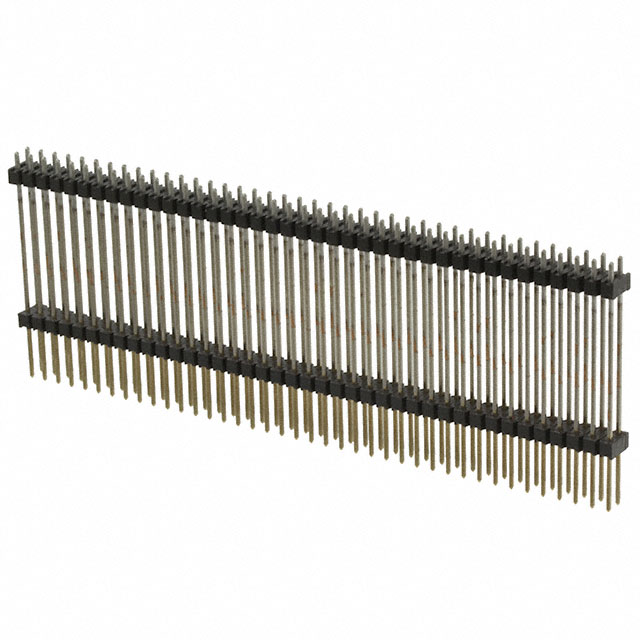

TE Connectivity Raychem Cable Protection 4-146509-0	1.43 in	36.322 mm	Through Hole	0.38 Ám	15 Áin	2.54 mm	0.1 in	0.33 in	8.382 mm	Gold	1 in	25.4 mm	80	2	Black	0.1 "	2.54 mm	Solder	0.1 in	2.54 mm
