HMN Series

Catalog

MODULE FEMALE 4POS HMN-004-F

Part	Material Flammability Rating	Housing Material	Connector Type	Current Rating (Amps)	Number of Positions	Termination Style	Gender	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Style
TE Connectivity AMP Connectors HMN-004-F	EN45545	Polycarbonate (PC)	Module without Contacts	40 A	4	Crimp	Female	CMF	125 °C	-40 C	830 V

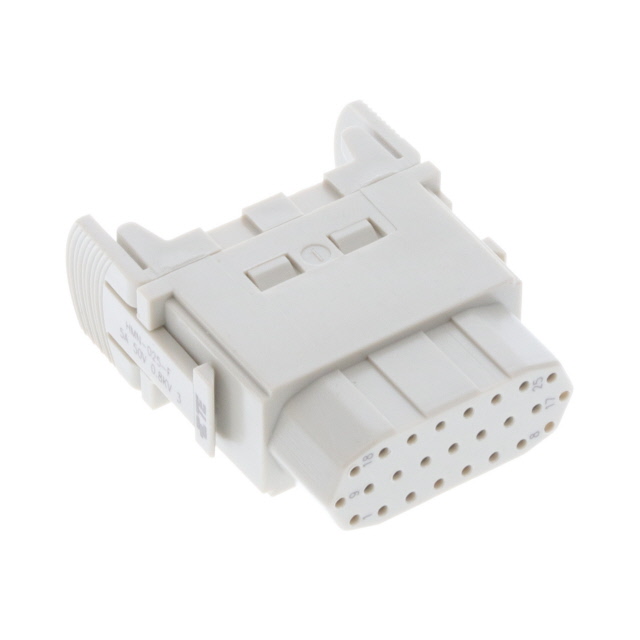

TE Connectivity AMP Connectors HMN-025-F	EN45545	Polycarbonate (PC)	Module without Contacts	5 A	25	Crimp	Female	CAF DAF	125 °C	-40 C	50 V

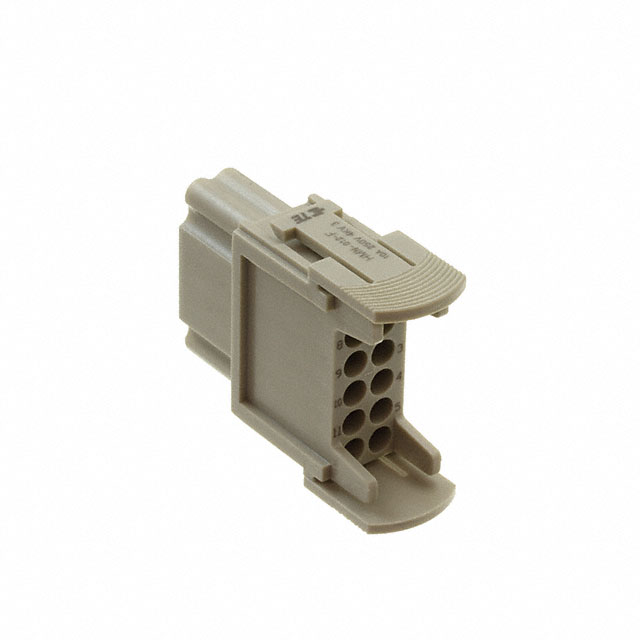

TE Connectivity AMP Connectors HMN-012-F	EN45545	Polycarbonate (PC)	Module without Contacts	10 A	12	Crimp	Female	CDF DDF	125 °C	-40 C	250 V

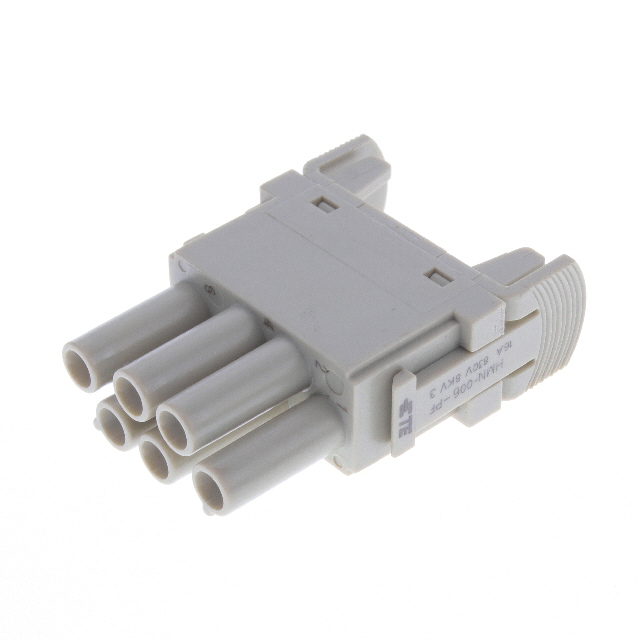

TE Connectivity AMP Connectors HMN-006-PF	EN45545	Polycarbonate (PC)	Module without Contacts	16 A	6	Crimp	Female	CEF DEF	125 °C	-40 C	830 V

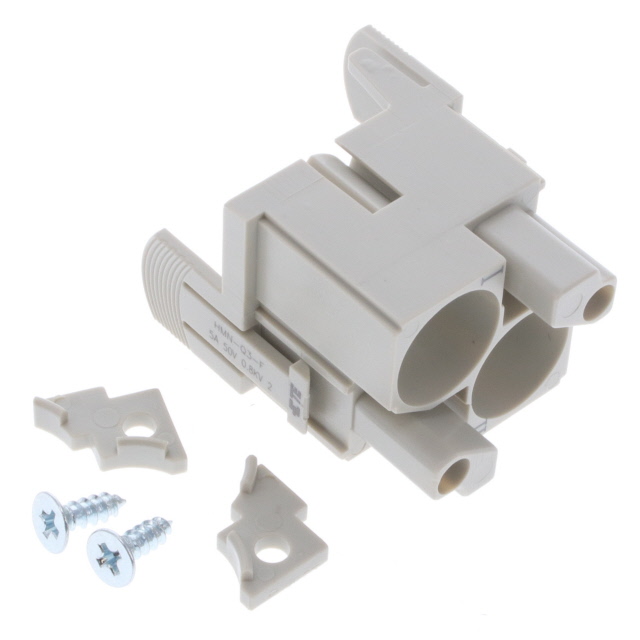

TE Connectivity AMP Connectors HMN-Q3-F		Polycarbonate (PC)	Module						125 °C	-40 C		Bottom Entry

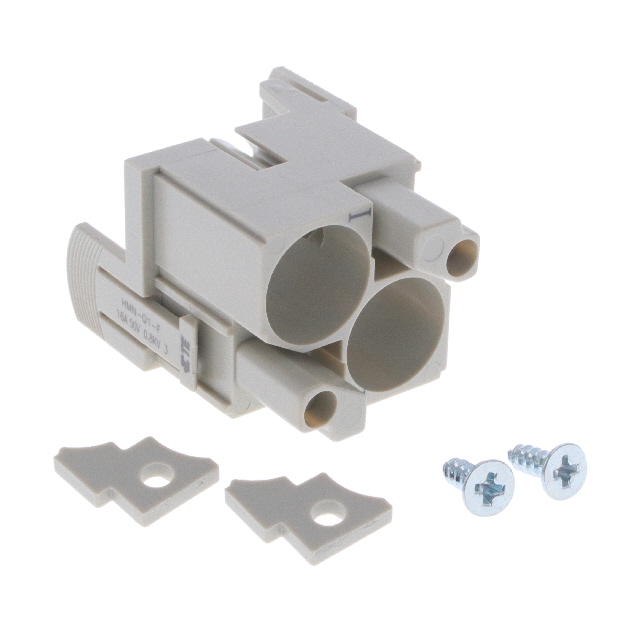

TE Connectivity AMP Connectors HMN-Q1-F		Polycarbonate (PC)	Module						125 °C	-40 C		Bottom Entry

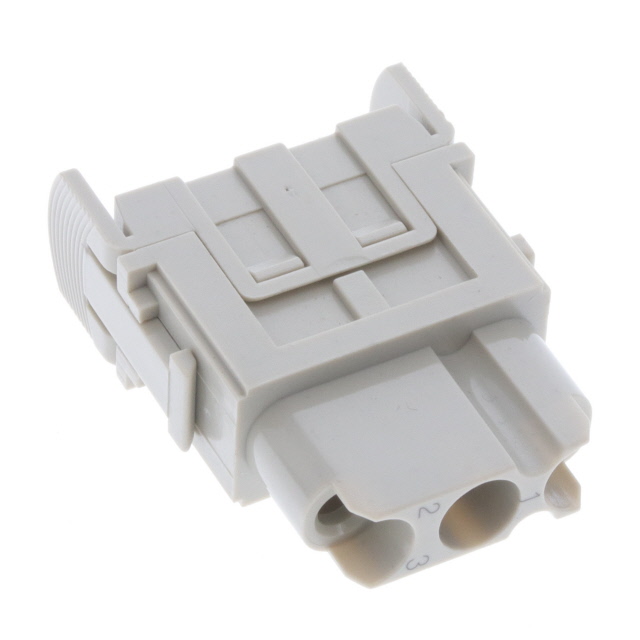

TE Connectivity AMP Connectors HMN-003-F	EN45545	Polycarbonate (PC)	Module without Contacts	40 A		Crimp	Female	CMF DMF	125 °C	-40 C	690 V

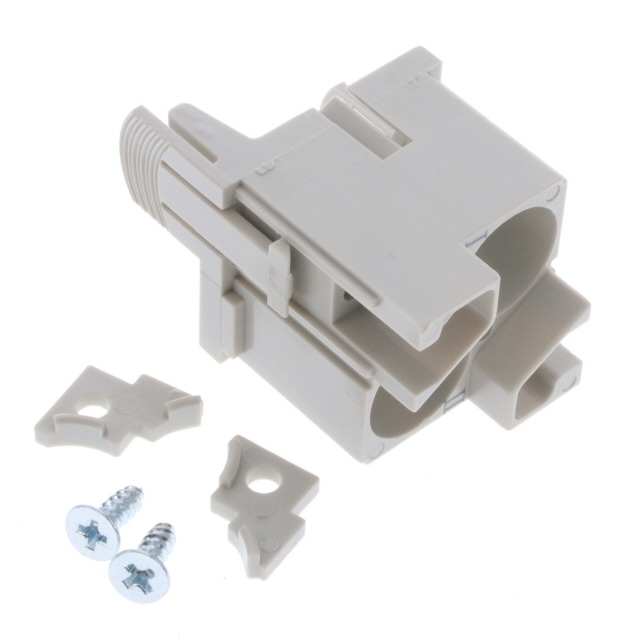

TE Connectivity AMP Connectors HMN-Q3-M		Polycarbonate (PC)	Module						125 °C	-40 C		Bottom Entry

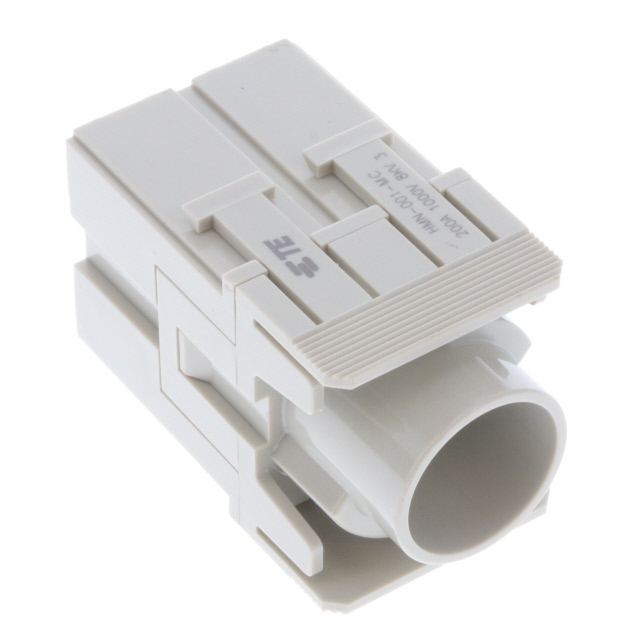

TE Connectivity AMP Connectors HMN-001-MC	EN45545	Polycarbonate (PC)	Module without Contacts	200 A	1	Crimp	Male	CNF	125 °C	-40 C	1000 VDC

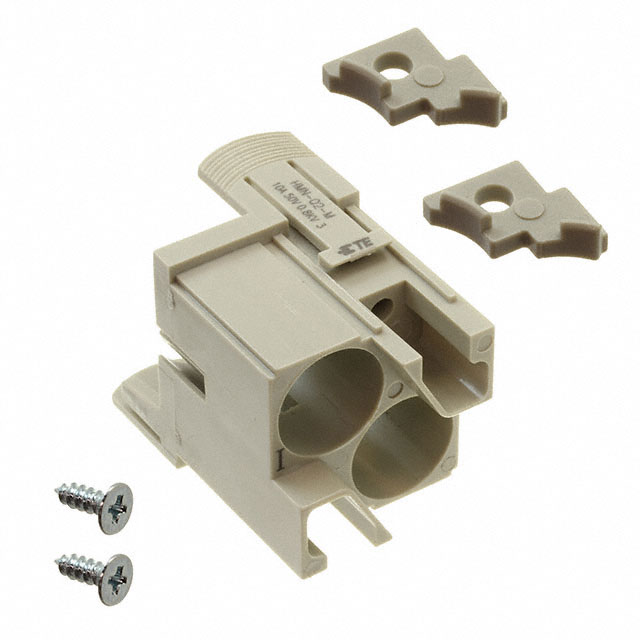

TE Connectivity AMP Connectors HMN-Q2-M		Polycarbonate (PC)	Module						125 °C	-40 C		Bottom Entry
