69916 Series

Catalog

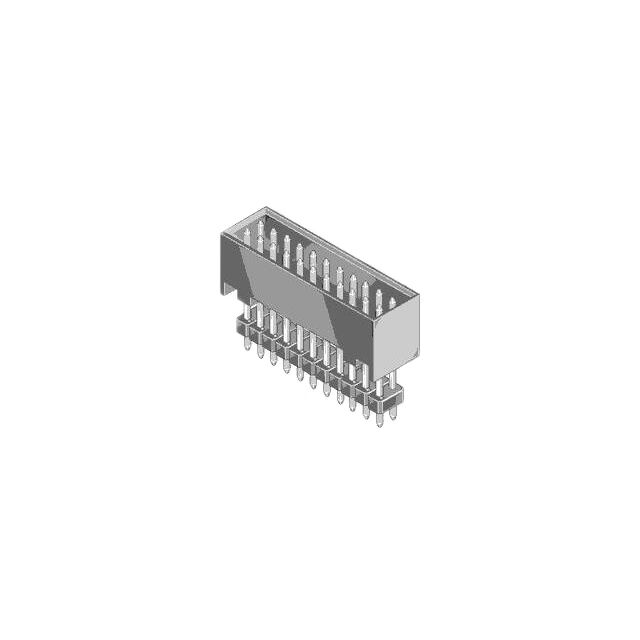

CONN HEADER VERT 72POS 2.54MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Height	Insulation Height	Mounting Type	Number of Positions	Contact Length - Post [x]	Contact Length - Post	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Insulation Color	Contact Finish - Mating	Contact Type	Connector Type	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Number of Rows	Termination	Contact Shape
Amphenol ICC (FCI) 69916-032LF	30 Áin	0.76 Ám	All	0.555 in	14.1 mm	0.1 in	2.54 mm	Push-Pull	0.5 in	12.7 mm	Through Hole	72	0.103 in	2.62 mm	Phosphor Bronze	2.54 mm	0.1 in	Shrouded - 4 Wall	Black	Gold or Gold GXT™	Male Pin	Header	0.275 in	6.99 mm	2	Solder	Square
Amphenol ICC (FCI) 69916-008	30 Áin	0.76 Ám	All	0.555 in	14.1 mm	0.1 in	2.54 mm	Push-Pull	0.5 in	12.7 mm	Through Hole	24	0.103 in	2.62 mm	Phosphor Bronze	2.54 mm	0.1 in	Shrouded - 4 Wall	Black	Gold or Gold GXT™	Male Pin	Header	0.275 in	6.99 mm	2	Solder	Square
Amphenol ICC (FCI) 69916-012LF	30 Áin	0.76 Ám	All	0.555 in	14.1 mm	0.1 in	2.54 mm	Push-Pull	0.5 in	12.7 mm	Through Hole		0.103 in	2.62 mm	Phosphor Bronze	2.54 mm	0.1 in	Shrouded - 4 Wall	Black	Gold or Gold GXT™	Male Pin	Header	0.275 in	6.99 mm	2	Solder	Square
Amphenol ICC (FCI) 69916-021LF	30 Áin	0.76 Ám	All	0.555 in	14.1 mm	0.1 in	2.54 mm	Push-Pull	0.5 in	12.7 mm	Through Hole	50	0.103 in	2.62 mm	Phosphor Bronze	2.54 mm	0.1 in	Shrouded - 4 Wall	Black	Gold or Gold GXT™	Male Pin	Header	0.275 in	6.99 mm	2	Solder	Square
Amphenol ICC (FCI) 69916-011	30 Áin	0.76 Ám	All	0.555 in	14.1 mm	0.1 in	2.54 mm	Push-Pull	0.5 in	12.7 mm	Through Hole	30	0.103 in	2.62 mm	Phosphor Bronze	2.54 mm	0.1 in	Shrouded - 4 Wall	Black	Gold or Gold GXT™	Male Pin	Header	0.275 in	6.99 mm	2	Solder	Square
Amphenol ICC (FCI) 69916-003LF	30 Áin	0.76 Ám	All	0.555 in	14.1 mm	0.1 in	2.54 mm	Push-Pull	0.5 in	12.7 mm	Through Hole	14	0.103 in	2.62 mm	Phosphor Bronze	2.54 mm	0.1 in	Shrouded - 4 Wall	Black	Gold or Gold GXT™	Male Pin	Header	0.275 in	6.99 mm	2	Solder	Square
Amphenol ICC (FCI) 69916-017LF	30 Áin	0.76 Ám	All	0.555 in	14.1 mm	0.1 in	2.54 mm	Push-Pull	0.5 in	12.7 mm	Through Hole	42	0.103 in	2.62 mm	Phosphor Bronze	2.54 mm	0.1 in	Shrouded - 4 Wall	Black	Gold or Gold GXT™	Male Pin	Header	0.275 in	6.99 mm	2	Solder	Square
Amphenol ICC (FCI) 69916-026	30 Áin	0.76 Ám	All	0.555 in	14.1 mm	0.1 in	2.54 mm	Push-Pull	0.5 in	12.7 mm	Through Hole	60	0.103 in	2.62 mm	Phosphor Bronze	2.54 mm	0.1 in	Shrouded - 4 Wall	Black	Gold or Gold GXT™	Male Pin	Header	0.275 in	6.99 mm	2	Solder	Square
Amphenol ICC (FCI) 69916-009LF	30 Áin	0.76 Ám	All	0.555 in	14.1 mm	0.1 in	2.54 mm	Push-Pull	0.5 in	12.7 mm	Through Hole	26	0.103 in	2.62 mm	Phosphor Bronze	2.54 mm	0.1 in	Shrouded - 4 Wall	Black	Gold or Gold GXT™	Male Pin	Header	0.275 in	6.99 mm	2	Solder	Square
Amphenol ICC (FCI) 69916-021	30 Áin	0.76 Ám	All	0.555 in	14.1 mm	0.1 in	2.54 mm	Push-Pull	0.5 in	12.7 mm	Through Hole	50	0.103 in	2.62 mm	Phosphor Bronze	2.54 mm	0.1 in	Shrouded - 4 Wall	Black	Gold or Gold GXT™	Male Pin	Header	0.275 in	6.99 mm	2	Solder	Square
