392-082 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 82POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Termination	Number of Positions/Bay/Row	Color	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pitch	Pitch	Card Type	Number of Rows [custom]	Gender	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Read Out	Contact Type	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 392-082-560-212	Polyester Thermoplastic	2	Solder	41	Black	Board Edge Straddle Mount	Gold	0.25 Ám	10 Áin	82	Card Extender	-40 C	105 ░C	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	2	Female	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm

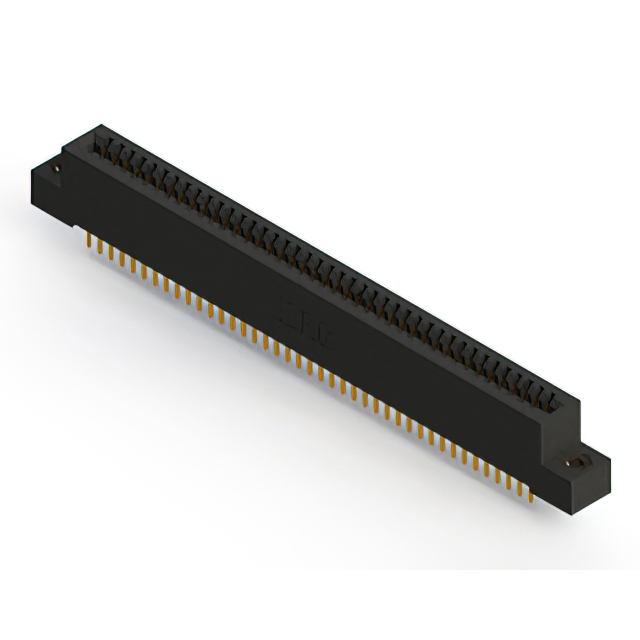

EDAC Inc. 392-082-521-207	Polyester Thermoplastic	2	Solder	41	Black	Through Hole	Gold	0.25 Ám	10 Áin	82		-40 C	105 ░C	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	2	Female	Flush Mount M3 Threaded Insert Top Opening			Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-082-555-203	Polyester Thermoplastic	2	Solder Eyelet(s)	41	Black	Board Edge Straddle Mount	Gold	0.25 Ám	10 Áin	82	Card Extender	-40 C	105 ░C	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	2	Female	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-082-523-208	Polyester Thermoplastic	2	Solder	41	Black	Through Hole	Gold	0.25 Ám	10 Áin	82		-40 C	105 ░C	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	2	Female	4-40 Flush Mount Threaded Insert Top Opening			Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-082-542-201	Polyester Thermoplastic	2	Wire Wrap	41	Black	Through Hole	Gold	0.25 Ám	10 Áin	82		-40 C	105 ░C	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	2	Female				Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-082-541-212	Polyester Thermoplastic	2	Wire Wrap	41	Black	Through Hole	Gold	0.25 Ám	10 Áin	82		-40 C	105 ░C	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	2	Female	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-082-559-204	Polyester Thermoplastic	2	Solder Wire Wrap	41	Black	Right Angle Through Hole	Gold	0.25 Ám	10 Áin	82		-40 C	105 ░C	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	2	Female	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-082-555-208	Polyester Thermoplastic	2	Solder Eyelet(s)	41	Black	Board Edge Straddle Mount	Gold	0.25 Ám	10 Áin	82	Card Extender	-40 C	105 ░C	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	2	Female	4-40 Flush Mount Threaded Insert Top Opening			Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-082-559-207	Polyester Thermoplastic	2	Solder Wire Wrap	41	Black	Right Angle Through Hole	Gold	0.25 Ám	10 Áin	82		-40 C	105 ░C	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	2	Female	Flush Mount M3 Threaded Insert Top Opening			Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 392-082-544-203	Polyester Thermoplastic	2	Wire Wrap	41	Black	Through Hole	Gold	0.25 Ám	10 Áin	82		-40 C	105 ░C	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	2	Female	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Dual	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
