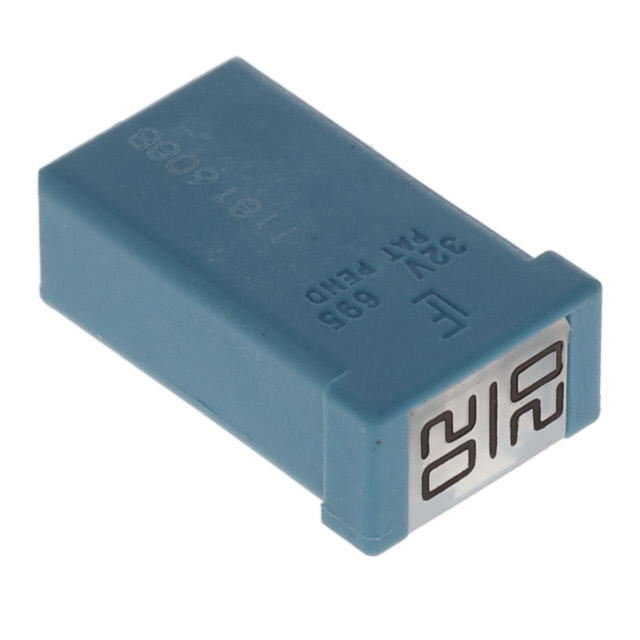

MCAS020.XP Series

Fuse - MCase 32VDC 20A 1-pc Card

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Fuse - MCase 32VDC 20A 1-pc Card

Part	Fuse Type	Breaking Capacity @ Rated Voltage	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Response Time
Littelfuse/Commercial Vehicle Products MCAS020.XP	Automotive	1 kA	Auto Link	10.7 mm	17.5 mm	6.2 mm	0.244 "	0.421 "	0.689 "	Blue	125 °C	-40 °C	32 V	20 A	Requires Holder	Slow Blow

Catalog

Fuse - MCase 32VDC 20A 1-pc Card

Description

The MCASE™ is a cartridge style fuse with female terminals for 2.8 mm male terminals. It has a miniaturized footprint for optimal usage of space. It is a time delayed fuse and can handle inrush currents. MCASE™ is designed and patented by Littelfuse.
