TB67S539 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
MOTOR DRIVER, TWO PHASE STEPPER, 2 OUTPUTS, 4.5 TO 34 V SUP, -20 TO 85°C, VQFN-32
| Part | Motor Type - Stepper | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Current - Output | Step Resolution | Supplier Device Package | Voltage - Supply | Voltage - Load [Min] | Voltage - Load [Max] | Mounting Type | Function | Motor Type - AC, DC | Interface | Technology | Package / Case | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

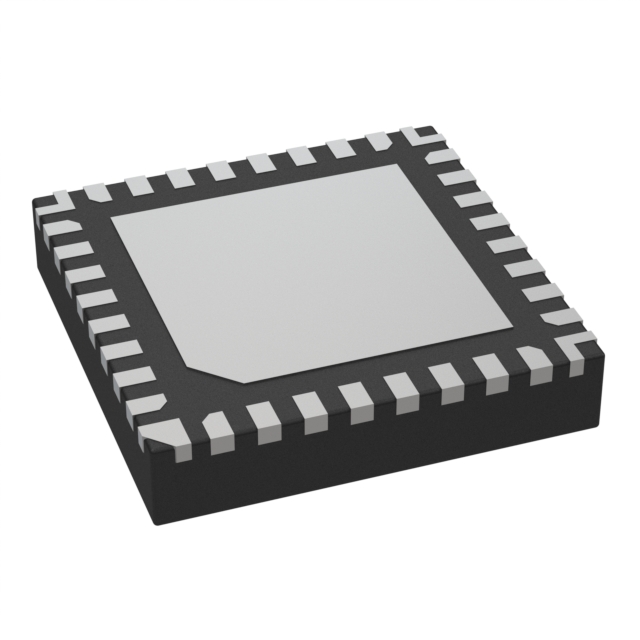

 Toshiba Semiconductor and Storage | Bipolar | 85 °C | -40 C | Half Bridge (4) | 2 A | 0.03125 0.0625 0.125 0.25 0.5 1 | 32-VQFN (5x5) | 6 V | 4.5 V | 34 V | Surface Mount | Driver - Fully Integrated Control and Power Stage | Brushed DC | PWM | NMOS | 32-VFQFN Exposed Pad | General Purpose |
