ATS-03A Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

HEATSINK 70X70X10MM XCUT T412

...

Part	Fin Height [custom]	Fin Height [custom]	Length [x]	Length [x]	Thermal Resistance @ Forced Air Flow	Package Cooled	Type	Width [x]	Width [x]	Material Finish	Attachment Method	Material	Shape	Length	Length	Fin Height [z]	Fin Height [z]	Width [y]	Width [y]	Shape [custom]	Shape [custom]	Fin Height	Fin Height	Width	Width
Advanced Thermal Solutions Inc. ATS-03A-26-C3-R0	0.394 "	10 mm	2.756 in	70 mm	14.24 °C/W	ASIC BGA CPU LGA	Top Mount	70 mm	2.756 "	Blue Anodized	Push Pin	Aluminum	Fins Square
Advanced Thermal Solutions Inc. ATS-03A-73-C2-R0	0.394 "	10 mm	0.984 in		28.85 °C/W	ASIC BGA CPU LGA	Top Mount	25 mm	0.984 "	Blue Anodized	Push Pin	Aluminum	Fins Square	25 mm
Advanced Thermal Solutions Inc. ATS-03A-16-C3-R0	0.394 "	10 mm			18.14 °C/W	ASIC BGA CPU LGA	Top Mount	54 mm	2.126 in	Blue Anodized	Push Pin	Aluminum	Fins Square	54 mm	2.126 in
Advanced Thermal Solutions Inc. ATS-03A-24-C2-R0			2.362 in	60 mm	8.37 °C/W	ASIC BGA CPU LGA	Top Mount			Blue Anodized	Push Pin	Aluminum	Fins Square			20 mm	0.79 in	2.362 in	60 mm

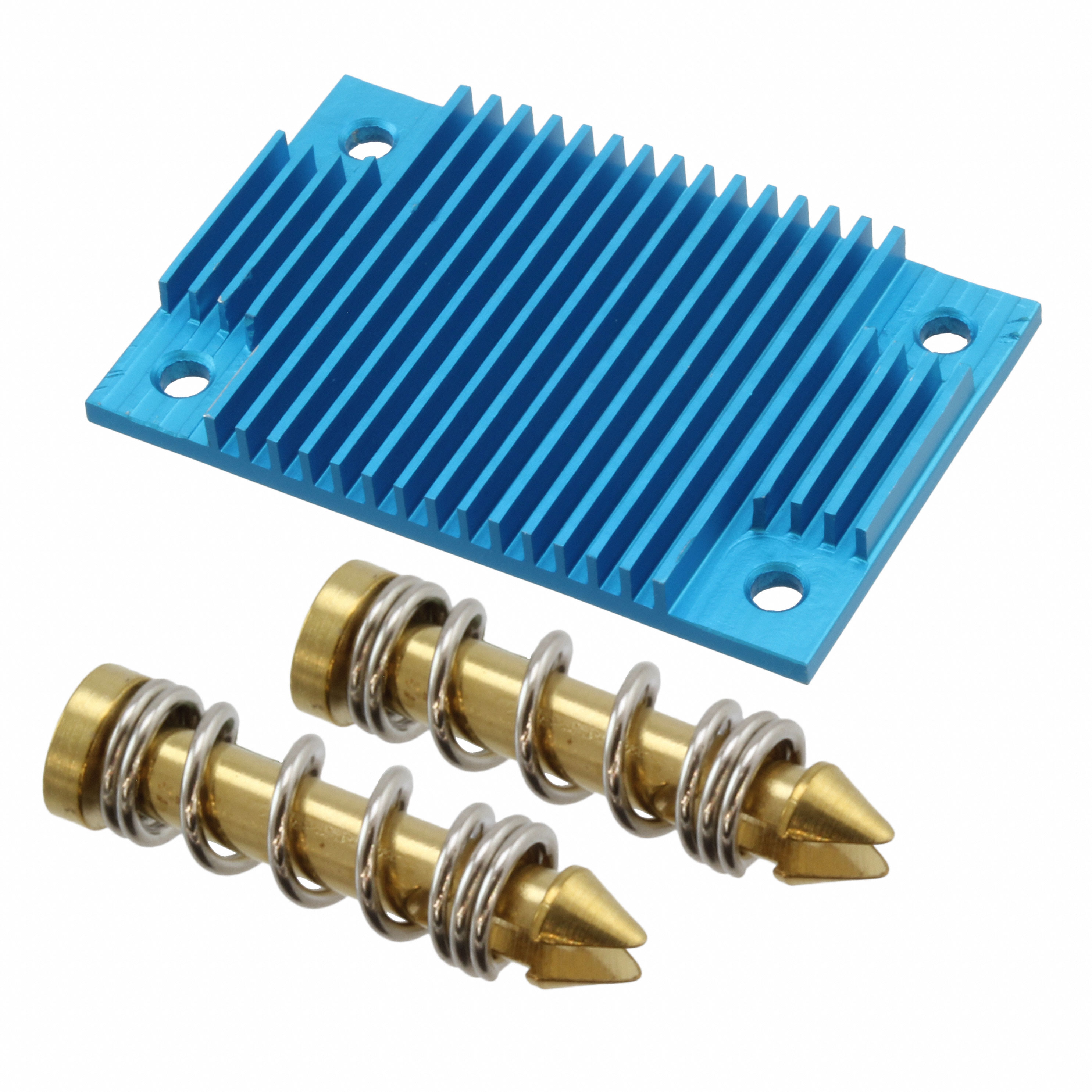

Advanced Thermal Solutions Inc. ATS-03A-35-C1-R0					22.46 °C/W	ASIC BGA CPU LGA	Top Mount			Blue Anodized	Push Pin	Aluminum		36.83 mm	1.45 "			2.267 in	57.6 mm	Rectangular	Fins	0.23 in	5.84 mm
Advanced Thermal Solutions Inc. ATS-03A-78-C3-R0	1.378 in	35 mm	0.984 in		7.98 °C/W	ASIC BGA CPU LGA	Top Mount	25 mm	0.984 "	Blue Anodized	Push Pin	Aluminum	Fins Square	25 mm
Advanced Thermal Solutions Inc. ATS-03A-104-C1-R1					25.21 °C/W	ASIC BGA CPU LGA	Top Mount			Blue Anodized	Push Pin	Aluminum	Fins Square					1.575 in	40 mm			0.5 "	12.7 mm
Advanced Thermal Solutions Inc. ATS-03A-71-C3-R0			1.772 in	45 mm	6.77 °C/W	ASIC BGA CPU LGA	Top Mount			Blue Anodized	Push Pin	Aluminum	Fins Square			30 mm	1.181 in							1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-03A-209-C3-R0	0.394 "	10 mm	2.756 in	70 mm	6.33 °C/W	ASIC BGA CPU LGA	Top Mount	70 mm	2.756 "	Blue Anodized	Push Pin	Aluminum	Fins Square
Advanced Thermal Solutions Inc. ATS-03A-36-C1-R0					14.81 °C/W	ASIC BGA CPU LGA	Top Mount			Blue Anodized	Push Pin	Aluminum		36.83 mm	1.45 "	11.43 mm	0.45 "	2.267 in	57.6 mm	Rectangular	Fins
