RC2512 Series

Manufacturer: YAGEO

Catalog

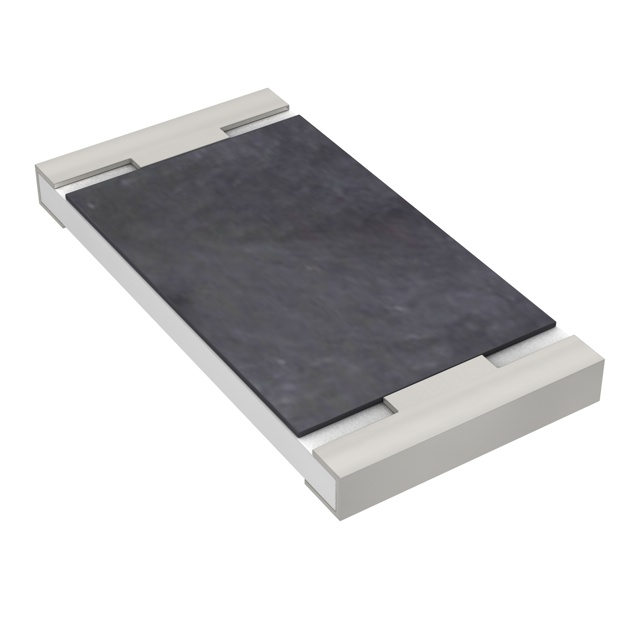

RES 22.1 OHM 1% 1W 2512

Part	Number of Terminations [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Ratings	Tolerance	Composition	Temperature Coefficient	Resistance
YAGEO RC2512FK-0722R1P	2	0.026 in	0.65 mm	2512	2512 (6432 Metric)	0.25 in	0.122 in	6.35 mm	3.1 mm	155 C	-55 C	1 W	7C1 RoHS w/out Exemption (100% Pb-Free)	1 %	Thick Film	100 ppm/°C
YAGEO RC2512FK-078R2P	2	0.026 in	0.65 mm	2512	2512 (6432 Metric)	0.25 in	0.122 in	6.35 mm	3.1 mm	155 C	-55 C	1 W	7C1 RoHS w/out Exemption (100% Pb-Free)	1 %	Thick Film	200 ppm/°C
YAGEO RC2512FK-073RP	2	0.026 in	0.65 mm	2512	2512 (6432 Metric)	0.25 in	0.122 in	6.35 mm	3.1 mm	155 C	-55 C	1 W	7C1 RoHS w/out Exemption (100% Pb-Free)	1 %	Thick Film	200 ppm/°C	3 Ohms
YAGEO RC2512FK-0722KP	2	0.026 in	0.65 mm	2512	2512 (6432 Metric)	0.25 in	0.122 in	6.35 mm	3.1 mm	155 C	-55 C	1 W	7C1 RoHS w/out Exemption (100% Pb-Free)	1 %	Thick Film	100 ppm/°C	22 kOhms
YAGEO RC2512FK-0749R9P	2	0.026 in	0.65 mm	2512	2512 (6432 Metric)	0.25 in	0.122 in	6.35 mm	3.1 mm	155 C	-55 C	1 W	7C1 RoHS w/out Exemption (100% Pb-Free)	1 %	Thick Film	100 ppm/°C	49.9 Ohms
YAGEO RC2512FK-0724K9P	2	0.026 in	0.65 mm	2512	2512 (6432 Metric)	0.25 in	0.122 in	6.35 mm	3.1 mm	155 C	-55 C	1 W	7C1 RoHS w/out Exemption (100% Pb-Free)	1 %	Thick Film	100 ppm/°C	24.9 kOhms
YAGEO RC2512FK-077R5P	2	0.026 in	0.65 mm	2512	2512 (6432 Metric)	0.25 in	0.122 in	6.35 mm	3.1 mm	155 C	-55 C	1 W	7C1 RoHS w/out Exemption (100% Pb-Free)	1 %	Thick Film	200 ppm/°C	7.5 Ohms
YAGEO RC2512FK-0747RP	2	0.026 in	0.65 mm	2512	2512 (6432 Metric)	0.25 in	0.122 in	6.35 mm	3.1 mm	155 C	-55 C	1 W	7C1 RoHS w/out Exemption (100% Pb-Free)	1 %	Thick Film	100 ppm/°C	47 Ohms
YAGEO RC2512FK-0768R1P	2	0.026 in	0.65 mm	2512	2512 (6432 Metric)	0.25 in	0.122 in	6.35 mm	3.1 mm	155 C	-55 C	1 W	7C1 RoHS w/out Exemption (100% Pb-Free)	1 %	Thick Film	100 ppm/°C	68.1 Ohms
