54020 Series

Catalog

CONN SOCKET PLCC 84POS TIN

Part	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Resistance	Termination	Contact Material - Mating	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Type	Termination Post Length	Termination Post Length	Pitch - Mating	Pitch - Mating	Features	Contact Material - Post [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)

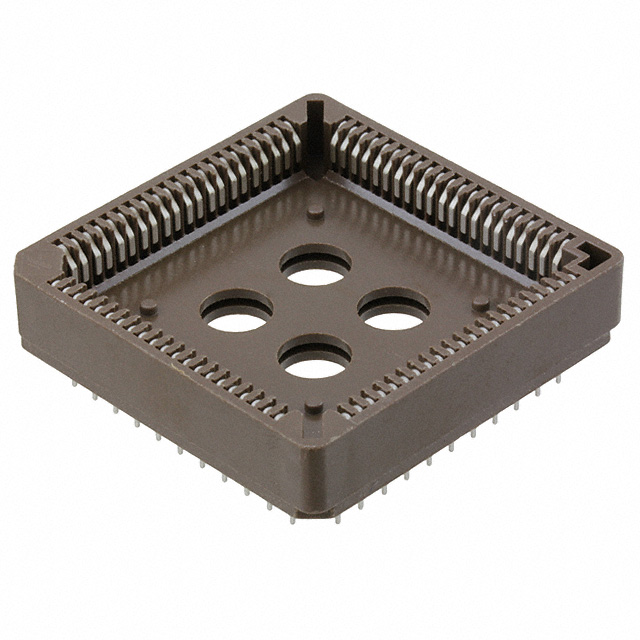

Amphenol ICC (FCI) 54020-84030LF	2.54 mm	0.1 in	-40 °C	105 ░C	20 mOhm	Solder	Copper Alloy	Through Hole	2.54 µm	100 µin	Tin	UL94 V-0	2.54 çm	100 çin	1 A	PLCC	3.2 mm	0.126 in	0.05 in	1.27 mm	Closed Frame	Copper Alloy

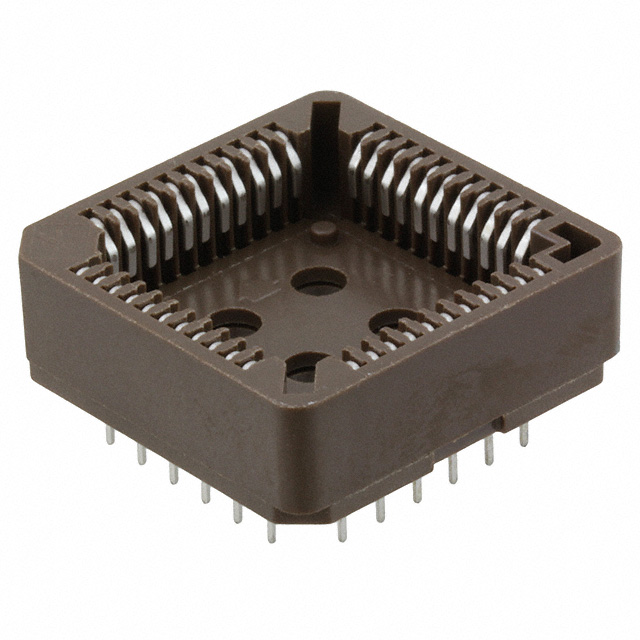

Amphenol ICC (FCI) 54020-44030LF	2.54 mm	0.1 in	-40 °C	105 ░C	20 mOhm	Solder	Copper Alloy	Through Hole	2.54 µm	100 µin	Tin	UL94 V-0	2.54 çm	100 çin	1 A	PLCC	3.2 mm	0.126 in	0.05 in	1.27 mm	Closed Frame	Copper Alloy	4 11	44

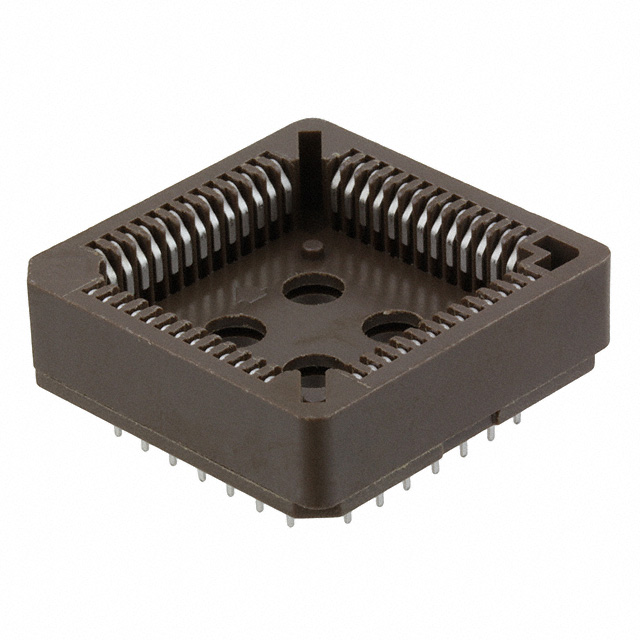

Amphenol ICC (FCI) 54020-52030LF	2.54 mm	0.1 in	-40 °C	105 ░C	20 mOhm	Solder	Copper Alloy	Through Hole	2.54 µm	100 µin	Tin	UL94 V-0	2.54 çm	100 çin	1 A	PLCC	3.2 mm	0.126 in	0.05 in	1.27 mm	Closed Frame	Copper Alloy
