1106452 Series

Catalog

CONN HOOD SIDE ENTRY SZ6 M40

Part	Housing Material	Housing Color	Ingress Protection	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Size	Style	Connector Type	Housing Finish	Lock Location	Thread Size

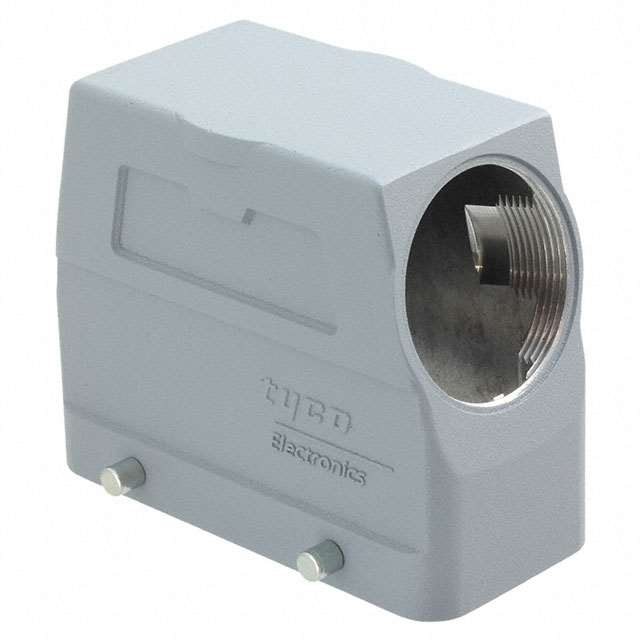

TE Connectivity AMP Connectors 1-1106452-7	Aluminum Alloy Die Cast	Gray	IP65 - Dust Tight Water Resistant	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	80 °C	-40 C	6	Side Entry	Hood	Powder Coated	Locking Clip (2) on Base Bottom
TE Connectivity AMP Connectors 1106452-1	Aluminum Alloy Die Cast	Gray	IP65 - Dust Tight Water Resistant	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm			6	Top Entry	Hood	Powder Coated	Locking Clip (2) on Base Bottom	M32
TE Connectivity AMP Connectors 1-1106452-1	Aluminum Alloy Die Cast	Black	IP65 - Dust Tight Water Resistant	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	80 °C	-40 C	6	Side Entry	Hood	Aluminum Oxide	Locking Clip (1) on Base Bottom	M32
TE Connectivity AMP Connectors 1106452-5	Aluminum Alloy Die Cast	Gray	IP65 - Dust Tight Water Resistant	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm			6	Side Entry	Hood	Powder Coated	Locking Clip (1) on Base Bottom	M32
