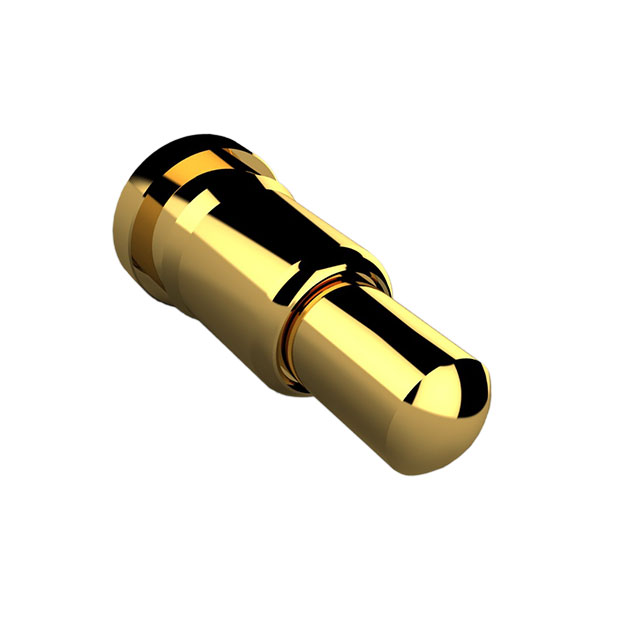

90022 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish | Minimum Working Height | Minimum Working Height | Operating Force - Initial | Contact Material | Mating Cycles | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Pad Layout Dimension | Pad Layout Dimension | Operating Force - Mid Compression | Plunger Size [diameter] | Plunger Size [diameter] | Maximum Working Height [Max] | Maximum Working Height [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | Surface Mount | Gold | 0.112 in | 2.85 mm | 25.49 gf | Brass Alloy | 40000 | 3 A | 20 µin | 0.51 µm | Sleeve & Plunger (Pogo Pins) | 0.072 in | 1.83 mm | 61.18 gf | 0.042 in | 1.07 mm | 0.167 in | 4.25 mm |
