ADS8332 Series

2.7V-to-5.5V, 16-Bit, 500kSPS Low-Power Serial ADC With 8-Ch Multiplexer and Breakout

Catalog

2.7V-to-5.5V, 16-Bit, 500kSPS Low-Power Serial ADC With 8-Ch Multiplexer and Breakout

Part	Sampling Rate (Per Second)	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Ratio - S/H:ADC	Mounting Type	Configuration	Number of Inputs	Package / Case	Package / Case	Number of A/D Converters	Voltage - Supply, Analog	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Input Type	Architecture	Reference Type	Number of Bits	Supplier Device Package	Utilized IC / Part	Supplied Contents	Input Range [Min]	Input Range [Max]	Power (Typ) @ Conditions	Contents	Input Range [Max]
Texas Instruments ADS8332IBPW	500k	5.5 V	1.65 V	1:1	Surface Mount	MUX-S/H-ADC	8	24-TSSOP	0.173 in 4.4 mm	1	5 V	2.7 V	3.6 V	85 °C	-40 °C	SPI	Pseudo-Differential Single Ended	SAR	External	16	24-TSSOP
Texas Instruments ADS8332IBRGER	500k	5.5 V	1.65 V	1:1	Surface Mount	MUX-S/H-ADC	8	24-VFQFN Exposed Pad		1	5 V	2.7 V	3.6 V	85 °C	-40 °C	SPI	Pseudo-Differential Single Ended	SAR	External	16	24-VQFN (4x4)

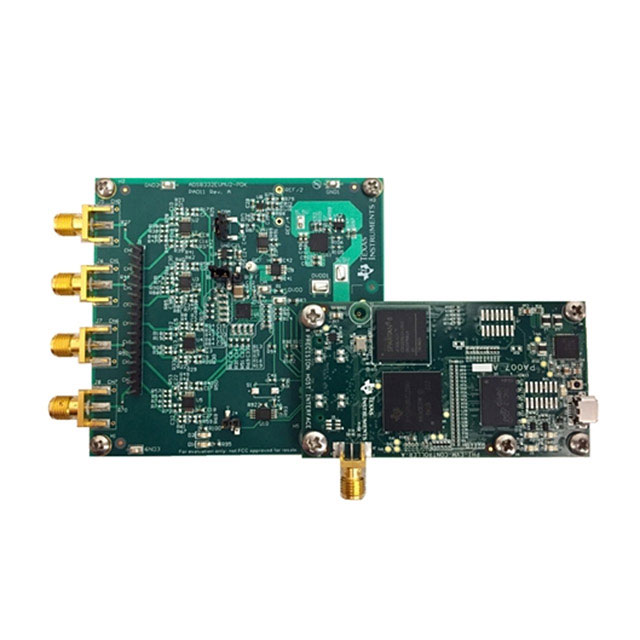

Texas Instruments ADS8332EVMV2-PDK	500k									1						Serial				16		ADS8332	Board(s)	0 V	4.096 V	14.2 mW

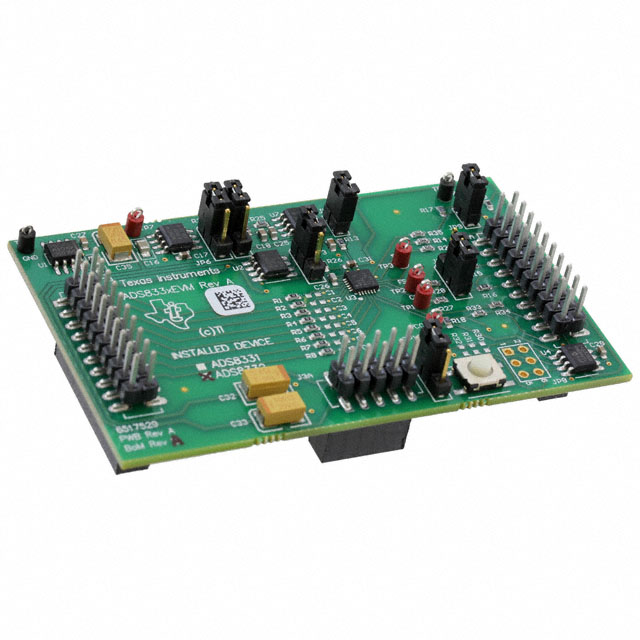

Texas Instruments ADS8332EVM	500k									1						DSP Serial SPI				16		ADS8332	Board(s)	0			Board(s)	VREF
Texas Instruments ADS8332IPWR	500k	5.5 V	1.65 V	1:1	Surface Mount	MUX-S/H-ADC	8	24-TSSOP	0.173 in 4.4 mm	1	5 V	2.7 V	3.6 V	85 °C	-40 °C	SPI	Pseudo-Differential Single Ended	SAR	External	16	24-TSSOP
Texas Instruments ADS8332IRGER	500k	5.5 V	1.65 V	1:1	Surface Mount	MUX-S/H-ADC	8	24-VFQFN Exposed Pad		1	5 V	2.7 V	3.6 V	85 °C	-40 °C	SPI	Pseudo-Differential Single Ended	SAR	External	16	24-VQFN (4x4)
Texas Instruments ADS8332IPW	500k	5.5 V	1.65 V	1:1	Surface Mount	MUX-S/H-ADC	8	24-TSSOP	0.173 in 4.4 mm	1	5 V	2.7 V	3.6 V	85 °C	-40 °C	SPI	Pseudo-Differential Single Ended	SAR	External	16	24-TSSOP
Texas Instruments ADS8332IRGET	500k	5.5 V	1.65 V	1:1	Surface Mount	MUX-S/H-ADC	8	24-VFQFN Exposed Pad		1	5 V	2.7 V	3.6 V	85 °C	-40 °C	SPI	Pseudo-Differential Single Ended	SAR	External	16	24-VQFN (4x4)
Texas Instruments ADS8332IBPWR	500k	5.5 V	1.65 V	1:1	Surface Mount	MUX-S/H-ADC	8	24-TSSOP	0.173 in 4.4 mm	1	5 V	2.7 V	3.6 V	85 °C	-40 °C	SPI	Pseudo-Differential Single Ended	SAR	External	16	24-TSSOP
Texas Instruments ADS8332IBRGET	500k	5.5 V	1.65 V	1:1	Surface Mount	MUX-S/H-ADC	8	24-VFQFN Exposed Pad		1	5 V	2.7 V	3.6 V	85 °C	-40 °C	SPI	Pseudo-Differential Single Ended	SAR	External	16	24-VQFN (4x4)

Catalog

2.7V-to-5.5V, 16-Bit, 500kSPS Low-Power Serial ADC With 8-Ch Multiplexer and Breakout

Key Features

• Low-Power, Flexible Supply Range:2.7-V to 5.5-V Analog Supply8.7 mW (250 kSPS in Auto-NAP Mode,VA = 2.7 V, VBD = 1.65 V)14.2 mW (500 kSPS, VA = 2.7 V,VBD = 1.65 V)Up to 500-kSPS Sampling RateExcellent DC Performance:±1.2 LSB Typical, ±2 LSB Maximum INL at2.7 V±0.6 LSB Typical, –1/1.5 LSB Maximum DNLat 2.7 V16-Bit NMC Over TemperatureExcellent AC Performance at 5 V, fIN= 1 kHz:91.5-dB SNR, 101-dB SFDR, –100-dB THDFlexible Analog Input Arrangement:On-Chip 4-/8-Channel Mux With BreakoutAuto/Manual Channel Select and TriggerOther Hardware Features:On-Chip Conversion Clock (CCLK)Software/Hardware ResetProgrammable Status/Polarity EOC/INTDaisy-Chain ModeGlobalCONVST(Independent ofCS)Deep, Nap, and Auto-NAP Powerdown ModesSPI™/DSP Compatible Serial InterfaceSeparate I/O Supply: 1.65 V to VASCLK up to 40 MHz (VA = VBD = 5 V)24-Pin 4-mm × 4-mm VQFN and 24-Pin TSSOPPackagesLow-Power, Flexible Supply Range:2.7-V to 5.5-V Analog Supply8.7 mW (250 kSPS in Auto-NAP Mode,VA = 2.7 V, VBD = 1.65 V)14.2 mW (500 kSPS, VA = 2.7 V,VBD = 1.65 V)Up to 500-kSPS Sampling RateExcellent DC Performance:±1.2 LSB Typical, ±2 LSB Maximum INL at2.7 V±0.6 LSB Typical, –1/1.5 LSB Maximum DNLat 2.7 V16-Bit NMC Over TemperatureExcellent AC Performance at 5 V, fIN= 1 kHz:91.5-dB SNR, 101-dB SFDR, –100-dB THDFlexible Analog Input Arrangement:On-Chip 4-/8-Channel Mux With BreakoutAuto/Manual Channel Select and TriggerOther Hardware Features:On-Chip Conversion Clock (CCLK)Software/Hardware ResetProgrammable Status/Polarity EOC/INTDaisy-Chain ModeGlobalCONVST(Independent ofCS)Deep, Nap, and Auto-NAP Powerdown ModesSPI™/DSP Compatible Serial InterfaceSeparate I/O Supply: 1.65 V to VASCLK up to 40 MHz (VA = VBD = 5 V)24-Pin 4-mm × 4-mm VQFN and 24-Pin TSSOPPackages

Description

The ADS8331 is a low-power, 16-bit, 500-k samples-per-second (SPS) analog-to-digital converter (ADC) with a unipolar, 4-to-1 multiplexer (mux) input. The device includes a 16-bit capacitor-based successive approximation register (SAR) ADC with inherent sample and hold. The ADS8332 is based on the same core and includes a unipolar 8-to-1 input mux. Both devices offer a high-speed, wide-voltage serial interface and are capable of daisy-chain operation when multiple converters are used. These converters are available in 24-pin, 4 × 4 QFN and 24-pin TSSOP packages and are fully specified for operation over the industrial –40°C to 85°C temperature range. The ADS8331 is a low-power, 16-bit, 500-k samples-per-second (SPS) analog-to-digital converter (ADC) with a unipolar, 4-to-1 multiplexer (mux) input. The device includes a 16-bit capacitor-based successive approximation register (SAR) ADC with inherent sample and hold. The ADS8332 is based on the same core and includes a unipolar 8-to-1 input mux. Both devices offer a high-speed, wide-voltage serial interface and are capable of daisy-chain operation when multiple converters are used. These converters are available in 24-pin, 4 × 4 QFN and 24-pin TSSOP packages and are fully specified for operation over the industrial –40°C to 85°C temperature range.
