02K80A Series
Manufacturer: Rosenberger
Beta
⌘K

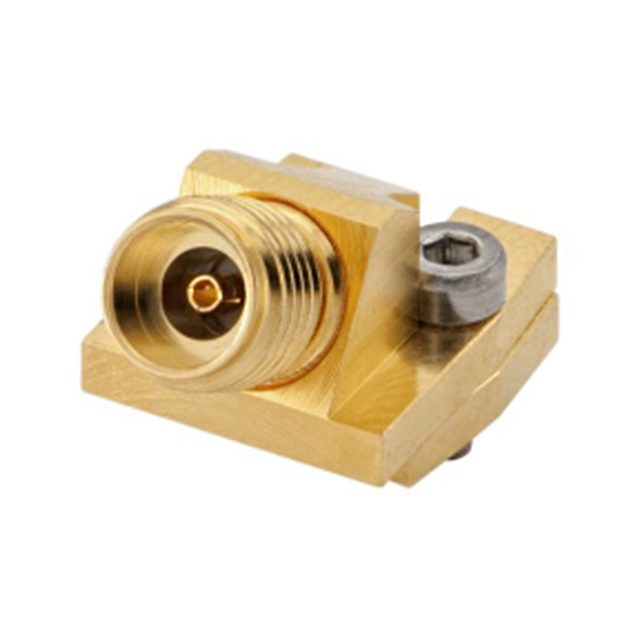

CONN RPC2.92 JACK R/A 50OHM SMD
| Part | Center Contact Plating | Body Material | Voltage Rating | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Includes | Body Finish | Fastening Type | Housing Color | Connector Type | Number of Ports | Frequency - Max [Max] | Contact Termination | Center Contact Material | Mounting Type | Features | Impedance | Connector Style [x] | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | Beryllium Copper | 250 V | 500 | 85 °C | -40 C | Polyetheretherketone (PEEK) | 1 Connector 2 Screws | Gold | Threaded | Gold | Female Socket Jack | 1 | 40 GHz | Solder | Beryllium Copper | Right Angle Surface Mount | Mounting Hardware | 50 Ohms | 2.92 mm | Screw |
