1085 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

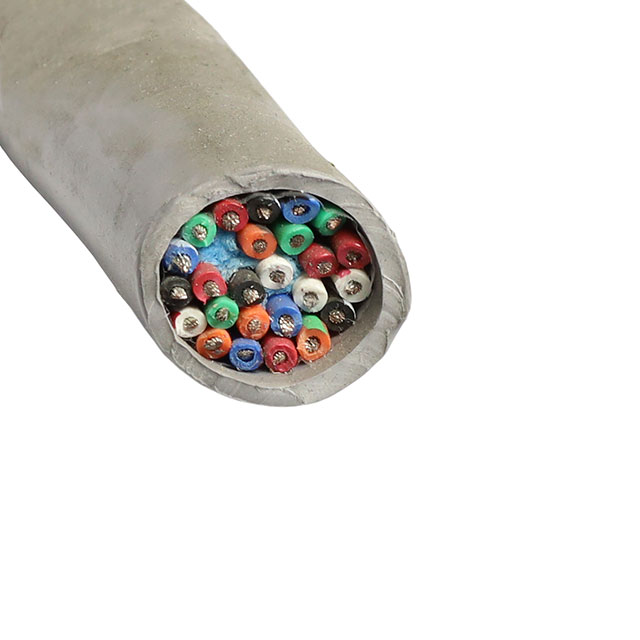

CABLE 25COND 16AWG SLATE
| Part | Length | Length | Voltage | Cable Type | Conductor Insulation | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Number of Conductors [custom] | Conductor Strand [custom] | Conductor Strand [diameter] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 152.4 m | 500 ft | 600 V | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Slate | 80 °C | -20 ░C | Communication Control | 0.907 in | 23.04 mm | 16 AWG | 25 | 19 | 0.0117 in | Copper Tinned | 0.083 " | 2.108 mm | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | 600 V | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Slate | 80 °C | -20 ░C | Communication Control | 0.907 in | 23.04 mm | 16 AWG | 25 | 19 | 0.0117 in | Copper Tinned | 0.083 " | 2.108 mm | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
