846-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K

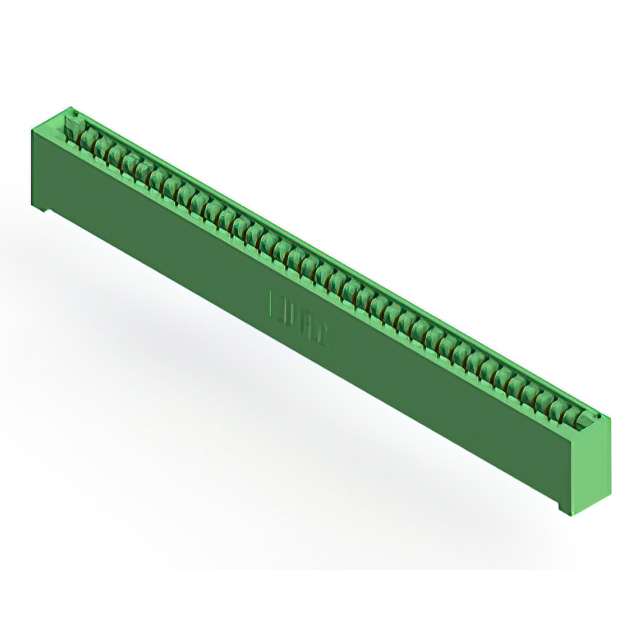

CONN EDGE SGL FMALE 37POS 0.125
| Part | Material - Insulation | Termination Rows | Number of Positions/Bay/Row | Number of Rows | Contact Type | Card Type | Termination | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Color | Flange Feature | Pitch | Pitch | Number of Positions | Mounting Type | Read Out | Gender | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 37 | 1 | Cantilever | Non Specified - Single Edge | Solder | Copper Alloy | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Green | 4-40 Flush Mount Threaded Insert Top Opening | 3.18 mm | 0.125 in | 37 | Through Hole | Single | Female | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 37 | 1 | Cantilever | Non Specified - Single Edge | Solder | Copper Alloy | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Green | 3.18 mm | 0.125 in | 37 | Right Angle Through Hole | Single | Female | 0.156 " | 3.96 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 37 | 1 | Cantilever | Non Specified - Single Edge | Solder Eyelet(s) | Copper Alloy | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Green | Flush Mount Top Opening Unthreaded | 3.18 mm | 0.125 in | 37 | Through Hole | Single | Female | 0.156 " | 3.96 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 37 | 1 | Cantilever | Non Specified - Single Edge | Solder | Copper Alloy | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Green | 4-40 Threaded Insert Top Mount Opening | 3.18 mm | 0.125 in | 37 | Right Angle Through Hole | Single | Female | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 37 | 1 | Cantilever | Non Specified - Single Edge | Solder | Copper Alloy | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Green | Flush Mount M3 Threaded Insert Top Opening | 3.18 mm | 0.125 in | 37 | Right Angle Through Hole | Single | Female | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 37 | 1 | Cantilever | Non Specified - Single Edge | Solder | Copper Alloy | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Green | Floating Bobbin Top Mount Opening | 3.18 mm | 0.125 in | 37 | Right Angle Through Hole | Single | Female | 0.116 " | 2.95 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 37 | 1 | Cantilever | Non Specified - Single Edge | Solder | Copper Alloy | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Green | 3.18 mm | 0.125 in | 37 | Through Hole | Single | Female | 0.128 " | 3.25 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 37 | 1 | Cantilever | Non Specified - Single Edge | Solder | Copper Alloy | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Green | 3.18 mm | 0.125 in | 37 | Through Hole | Single | Female | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 37 | 1 | Cantilever | Non Specified - Single Edge | Solder | Copper Alloy | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Green | 4-40 Threaded Insert Top Mount Opening | 3.18 mm | 0.125 in | 37 | Through Hole | Single | Female | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 37 | 1 | Cantilever | Non Specified - Single Edge | Solder | Copper Alloy | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Green | Floating Bobbin Flush Mount | 3.18 mm | 0.125 in | 37 | Right Angle Through Hole | Single | Female | 0.116 " | 2.95 mm |
