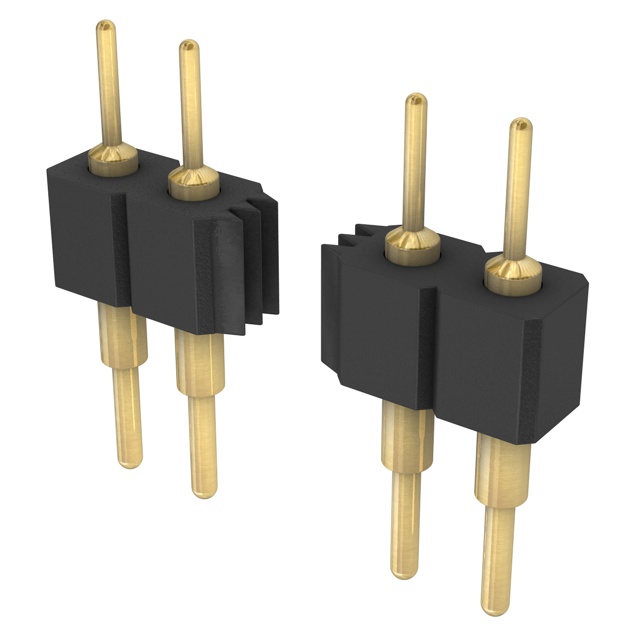

351-10 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONN HEADER VERT 20POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Fastening Type | Contact Finish - Post | Current Rating (Amps) | Contact Type | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Number of Positions Loaded | Number of Positions | Contact Finish - Mating | Contact Material | Overall Contact Length | Overall Contact Length | Insulation Height | Insulation Height | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Connector Type | Contact Shape | Insulation Color | Mounting Type | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Overall Contact Length [x] | Overall Contact Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | 10 Áin | 0.25 çm | Unshrouded | Push-Pull | Gold | 3 A | Male Pin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.25 µm | 10 µin | 3 mm | 0.118 in | UL94 V-0 | All | 20 | Gold | Brass | 33.6 mm | 1.323 in | 0.116 " | 2.95 mm | 1 | -55 C | 125 °C | Solder | Header | Circular | Black | Through Hole | 150 VDC | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm | ||
Preci-Dip | 10 Áin | 0.25 çm | Unshrouded | Push-Pull | Gold | 3 A | Male Pin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.25 µm | 10 µin | 3 mm | 0.118 in | UL94 V-0 | All | 41 | Gold | Brass | 21.5 mm | 0.846 in | 0.116 " | 2.95 mm | 1 | -55 C | 125 °C | Solder | Header | Circular | Black | Through Hole | 150 VDC | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm | ||
Preci-Dip | 10 Áin | 0.25 çm | Unshrouded | Push-Pull | Gold | 3 A | Male Pin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.25 µm | 10 µin | 3 mm | 0.118 in | UL94 V-0 | All | 15 | Gold | Brass | 0.116 " | 2.95 mm | 1 | -55 C | 125 °C | Solder | Header | Circular | Black | Through Hole | 150 VDC | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm | 14.6 mm | 0.575 in | ||
Preci-Dip | 10 Ąin | 0.25 Ąm | Unshrouded | Push-Pull | Gold | 3 A | Male Pin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.25 Ąm 0.25 µm | 10 Ąin 10 µin | 3 mm | 0.118 in | UL94 V-0 | All | 40 | Gold | Brass | 33.6 mm | 1.323 in | 0.116 " | 2.95 mm | 1 | -55 C | 125 °C | Solder | Header | Circular | Black | Through Hole | 150 VDC | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm | ||
Preci-Dip | 10 Áin | 0.25 çm | Unshrouded | Push-Pull | Gold | 3 A | Male Pin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.25 µm | 10 µin | 3 mm | 0.118 in | UL94 V-0 | All | 38 | Gold | Brass | 33.6 mm | 1.323 in | 0.116 " | 2.95 mm | 1 | -55 C | 125 °C | Solder | Header | Circular | Black | Through Hole | 150 VDC | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm | ||
Preci-Dip | 10 Áin | 0.25 çm | Unshrouded | Push-Pull | Gold | 3 A | Male Pin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.25 µm | 10 µin | 3 mm | 0.118 in | UL94 V-0 | All | 35 | Gold | Brass | 33.6 mm | 1.323 in | 0.116 " | 2.95 mm | 1 | -55 C | 125 °C | Solder | Header | Circular | Black | Through Hole | 150 VDC | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm | ||
Preci-Dip | 10 Áin | 0.25 çm | Unshrouded | Push-Pull | Gold | 3 A | Male Pin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.25 µm | 10 µin | 3 mm | 0.118 in | UL94 V-0 | All | 16 | Gold | Brass | 21.5 mm | 0.846 in | 0.116 " | 2.95 mm | 1 | -55 C | 125 °C | Solder | Header | Circular | Black | Through Hole | 150 VDC | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm | ||
Preci-Dip | 10 Áin | 0.25 çm | Unshrouded | Push-Pull | Gold | 3 A | Male Pin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.25 µm | 10 µin | 3 mm | 0.118 in | UL94 V-0 | All | 6 | Gold | Brass | 33.6 mm | 1.323 in | 0.116 " | 2.95 mm | 1 | -55 C | 125 °C | Solder | Header | Circular | Black | Through Hole | 150 VDC | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm | ||
Preci-Dip | 10 Áin | 0.25 çm | Unshrouded | Push-Pull | Gold | 3 A | Male Pin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.25 µm | 10 µin | 3 mm | 0.118 in | UL94 V-0 | All | 51 | Gold | Brass | 33.6 mm | 1.323 in | 0.116 " | 2.95 mm | 1 | -55 C | 125 °C | Solder | Header | Circular | Black | Through Hole | 150 VDC | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm | ||
Preci-Dip | 10 Áin | 0.25 çm | Unshrouded | Push-Pull | Gold | 3 A | Male Pin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.25 µm | 10 µin | 3 mm | 0.118 in | UL94 V-0 | All | 60 | Gold | Brass | 21.5 mm | 0.846 in | 0.116 " | 2.95 mm | 1 | -55 C | 125 °C | Solder | Header | Circular | Black | Through Hole | 150 VDC | 0.1 " | 2.54 mm | 0.126 " | 3.2 mm |
