TPS81256 Series
Manufacturer: Texas Instruments
Beta
⌘K
INTEGRATED POWER SOLUTION, 3W HIGH-EFFICIENCY BOOST CONVERTER MODULE IN MICROSIP™ PACKAGE
| Part | Package / Case | Number of Outputs | Voltage - Output (Min/Fixed) | Topology | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Synchronous Rectifier | Function | Voltage - Input (Max) [Max] | Output Configuration | Frequency - Switching | Supplier Device Package | Voltage - Input (Min) [Min] | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] | Main Purpose | Utilized IC / Part | Voltage - Output | Contents | Regulator Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

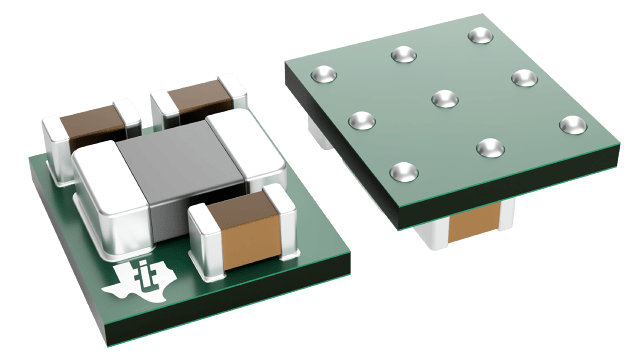

 Texas Instruments | 9-SMD Module | 1 | 5 V | Boost | Surface Mount | 85 C | -40 ¯C | Step-Up | 5.5 V | Positive | 4 MHz | 9-uSIP | 2.5 V | ||||||||||||

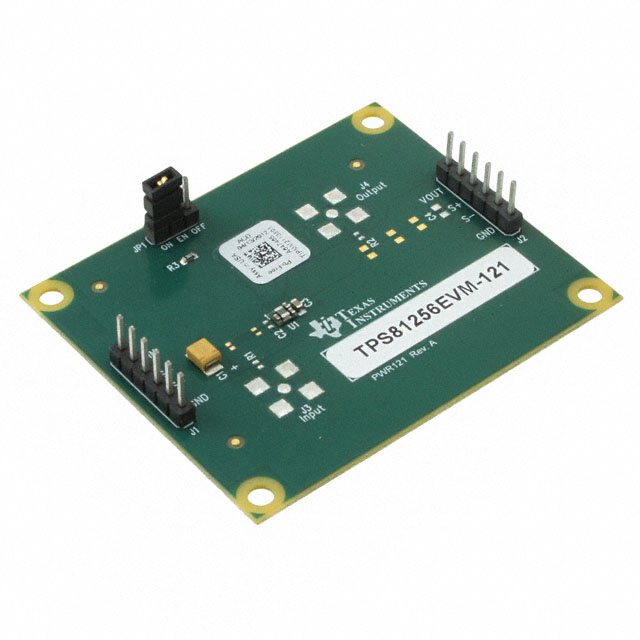

 Texas Instruments | 4.5 MHz | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | 2.5 V | 4.85 V | DC/DC Step Up | TPS81256 | 5 V | Board(s) | Boost | |||||||||||||
 Texas Instruments | 9-SMD Module | 1 | 5 V | Boost | Surface Mount | 85 C | -40 ¯C | Step-Up | 5.5 V | Positive | 4 MHz | 9-uSIP | 2.5 V |
