TR9KZ3160 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

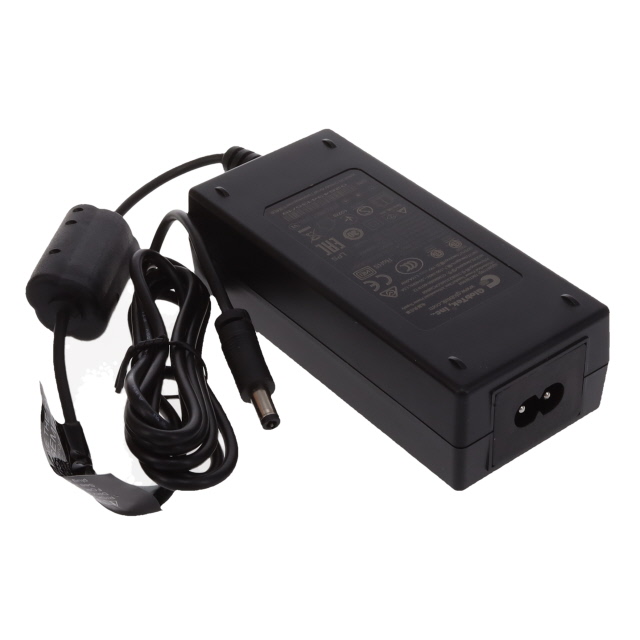

AC/DC DESKTOP ADAPTER 19V 60W
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Form | Output Connector [diameter] | Output Connector | Output Connector [x] | Region Utilized | Input Type | Polarization | Approval Agency | Cord Length | Cord Length | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Voltage - Output | Power (Watts) | No Load Power Consumption | Current - Output (Max) [Max] | Input Connector | Applications | Standard Number | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 264 VAC | 90 VAC | Desktop (Class II) | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | International | Cord (Sold Separately) | Positive Center | BSMI CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO VCCI | 60.2 in | 1.53 m | -20 ░C | 40 °C | CoC Tier 2 Level VI | 19 V | 60 W | 150 mW | 3.16 A | IEC 320-C8 | Household Appliances ITE (Commercial) Medical | 60335-1 60601-1-11 60601-1-2 60950-1 62368-1 | 34.2 mm | 1.35 in | 53.5 mm | 4.63 in | 117.5 mm | 2.11 in |
