9443-1563 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

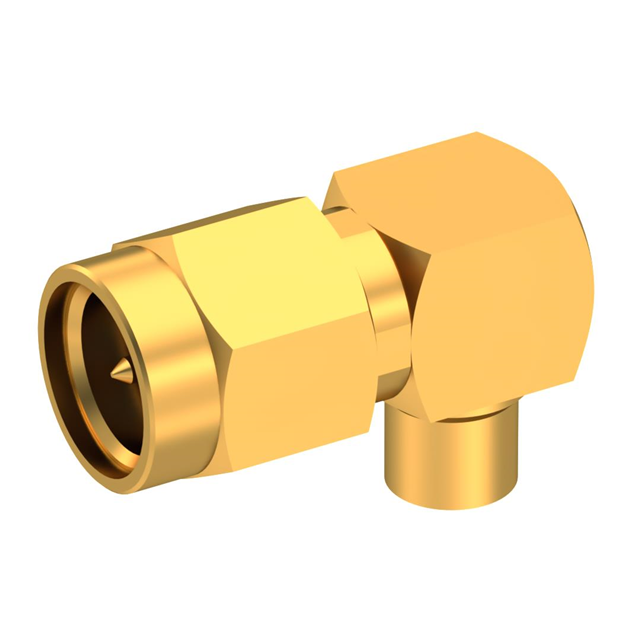

SMA M RA NA SD .141
| Part | Mating Cycles | Dielectric Material | Center Contact Plating | Body Finish | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Fastening Type | Shield Termination | Housing Color | Mounting Type | Connector Style | Contact Termination | Center Contact Material | Frequency - Max [Max] | Connector Type | Number of Ports | Impedance | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Gold | Gold | 500 V | 105 ░C | -65 ░C | Stainless Steel | Threaded | Solder | Gold | Free Hanging (In-Line) Right Angle | SMA | Solder | Beryllium Copper | 18 GHz | Plug Male Pin | 1 | 50 Ohms | |
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Gold | Gold | 350 VDC | 105 ░C | -65 ░C | Stainless Steel | Threaded | Solder | Gold | Free Hanging (In-Line) Right Angle | SMA | Solder | Beryllium Copper | 18 GHz | Plug Male Pin | 1 | 50 Ohms | RG-405 (.085" Semi Rigid) |
