1634584 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

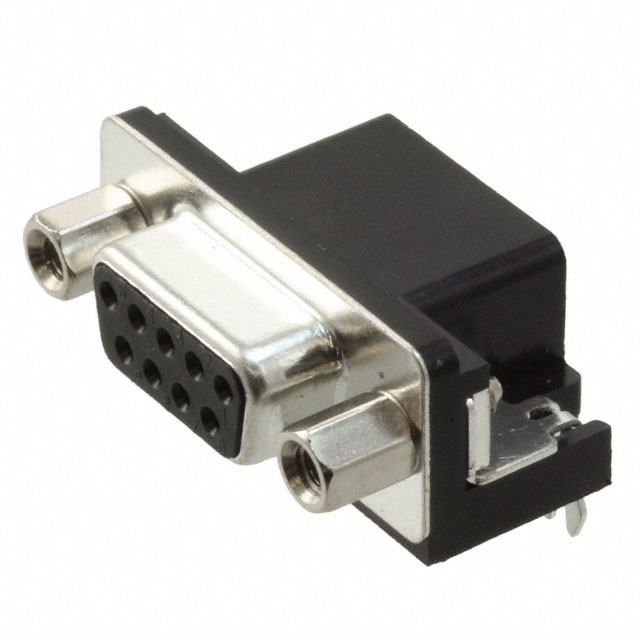

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating | Termination | Connector Type | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Backset Spacing | Backset Spacing | Shell Material, Finish | Mounting Type | Current Rating (Amps) | Material Flammability Rating | Connector Style | Number of Positions | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Thermoplastic | Black | -55 C | 105 ░C | Phosphor Bronze | 250 V | Solder | Receptacle Female Sockets | Board Lock | 1 | DE E | 4-40 Mating Side Female Screwlock | Signal | 0.38 µm | 15 µin | Gold | 0.411 in | 10.43 mm | Nickel Plated Steel | Right Angle Through Hole | 5 A | UL94 V-0 | D-Sub | 9 | 2 |
