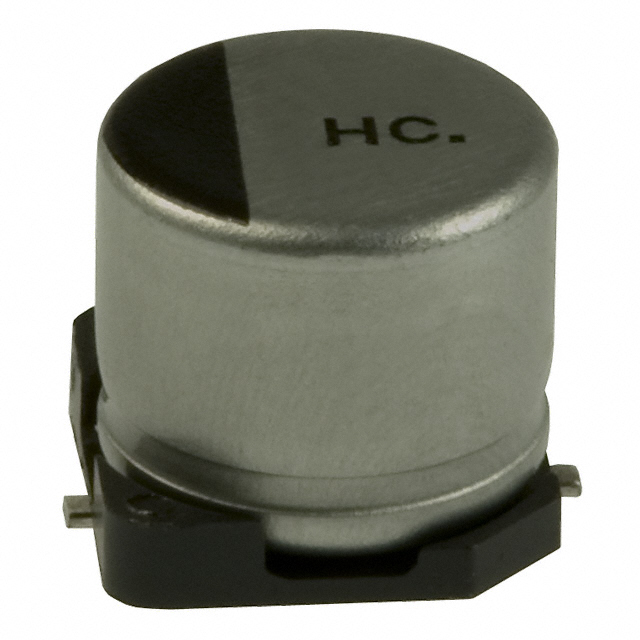

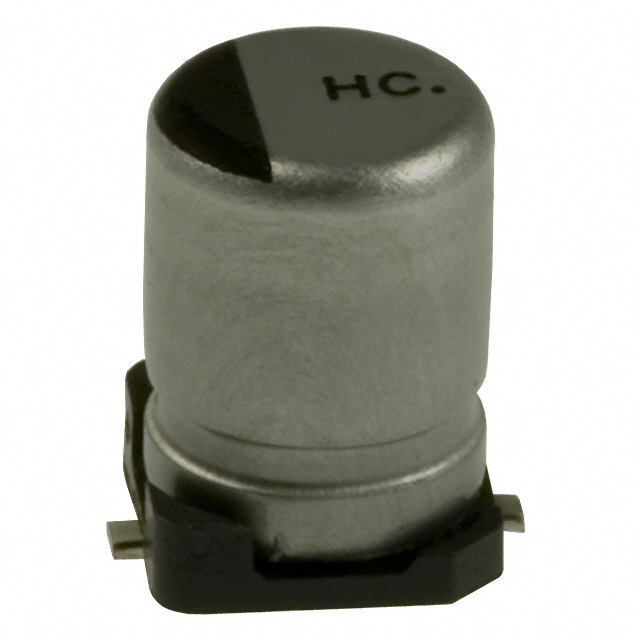

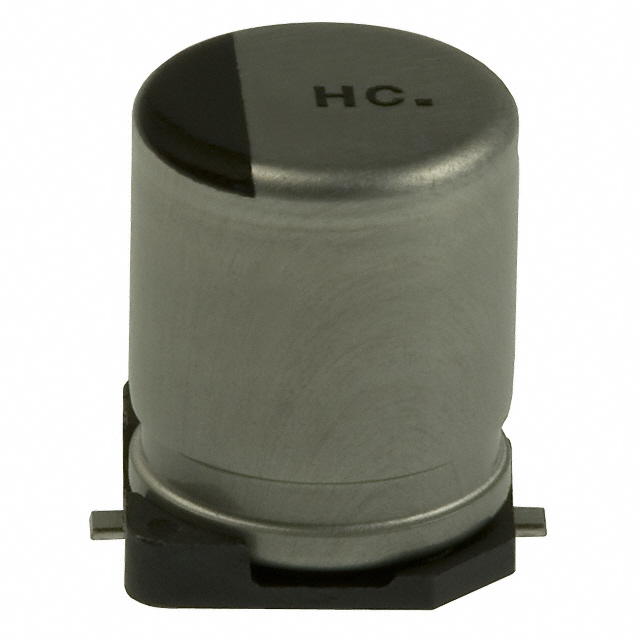

EEE-HC Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 33UF 20% 50V SMD

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Ripple Current @ High Frequency	Tolerance	Capacitance	Ratings	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Lifetime @ Temp.	Package / Case	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales EEE-HC1H330P	Surface Mount	-40 °C	105 ░C	Automotive	0.413 in	10.5 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	154.7 mA	20 %	33 ÁF	AEC-Q200	50 VDC	0.315 "	8 mm	Polar	5000 Hrs	Radial Can - SMD	91 mA
Panasonic Industrial Automation Sales EEE-HC1H220XP	Surface Mount	-40 °C	105 ░C	Automotive			0.26 in	6.6 mm	0.26 in	6.6 mm	83.3 mA	20 %	22 µF	AEC-Q200	50 VDC	0.248 in	6.3 mm	Polar	3000 Hrs	Radial Can - SMD	49 mA	8 mm	0.315 in
Panasonic Industrial Automation Sales EEE-HC1A221P	Surface Mount	-40 °C	105 ░C	Automotive			0.327 "	8.3 mm	0.327 in	8.3 mm	272 mA	20 %	220 µF	AEC-Q200	10 V	0.315 "	8 mm	Polar	5000 Hrs	Radial Can - SMD	160 mA	10.2 mm	0.402 "
Panasonic Industrial Automation Sales EEE-HC0J102P	Surface Mount	-40 °C	105 ░C	Automotive			0.406 in	10.3 mm	0.406 "	10.3 mm	532.1 mA	20 %	1000 µF	AEC-Q200	6.3 V	0.394 in	10 mm	Polar	5000 Hrs	Radial Can - SMD	313 mA	10.2 mm	0.402 "
Panasonic Industrial Automation Sales EEE-HC1E101P	Surface Mount	-40 °C	105 ░C	Automotive			0.327 "	8.3 mm	0.327 in	8.3 mm	221 mA	20 %	100 µF	AEC-Q200	25 VDC	0.315 "	8 mm	Polar	5000 Hrs	Radial Can - SMD	130 mA	10.2 mm	0.402 "
Panasonic Industrial Automation Sales EEE-HC1C471P	Surface Mount	-40 °C	105 ░C	Automotive			0.406 in	10.3 mm	0.406 "	10.3 mm	578 mA	20 %	470 µF	AEC-Q200	16 V	0.394 in	10 mm	Polar	5000 Hrs	Radial Can - SMD	340 mA	10.2 mm	0.402 "
Panasonic Industrial Automation Sales EEE-HC1V330XP	Surface Mount	-40 °C	105 ░C	Automotive	0.303 in	7.7 mm	0.26 in	6.6 mm	0.26 in	6.6 mm	96.9 mA	20 %	33 ÁF	AEC-Q200	35 V	0.248 in	6.3 mm	Polar	3000 Hrs	Radial Can - SMD	57 mA
Panasonic Industrial Automation Sales EEE-HC1H3R3R	Surface Mount	-40 °C	105 ░C	Automotive			0.169 in	4.3 mm	0.169 "	4.3 mm	27.2 mA	20 %	3.3 µF	AEC-Q200	50 VDC	0.157 in	4 mm	Polar	3000 Hrs	Radial Can - SMD	16 mA	6.1 mm	0.24 in
Panasonic Industrial Automation Sales EEE-HC1C101XP	Surface Mount	-40 °C	105 ░C	Automotive	0.303 in	7.7 mm	0.26 in	6.6 mm	0.26 in	6.6 mm	137.7 mA	20 %	100 µF	AEC-Q200	16 V	0.248 in	6.3 mm	Polar	3000 Hrs	Radial Can - SMD	81 mA
Panasonic Industrial Automation Sales EEE-HC1H470P	Surface Mount	-40 °C	105 ░C	Automotive	0.413 in	10.5 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	170 mA	20 %	47 µF	AEC-Q200	50 VDC	0.315 "	8 mm	Polar	5000 Hrs	Radial Can - SMD	100 mA
