1379671 Series

Catalog

40W PLUG HSG ASSY NATURAL

Part	Number of Positions	Pitch	Pitch	Number of Rows [custom]	Contact Termination	Mounting Type	Insulation Material	Contact Type	Features	Fastening Type	Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing	Note	Row Spacing

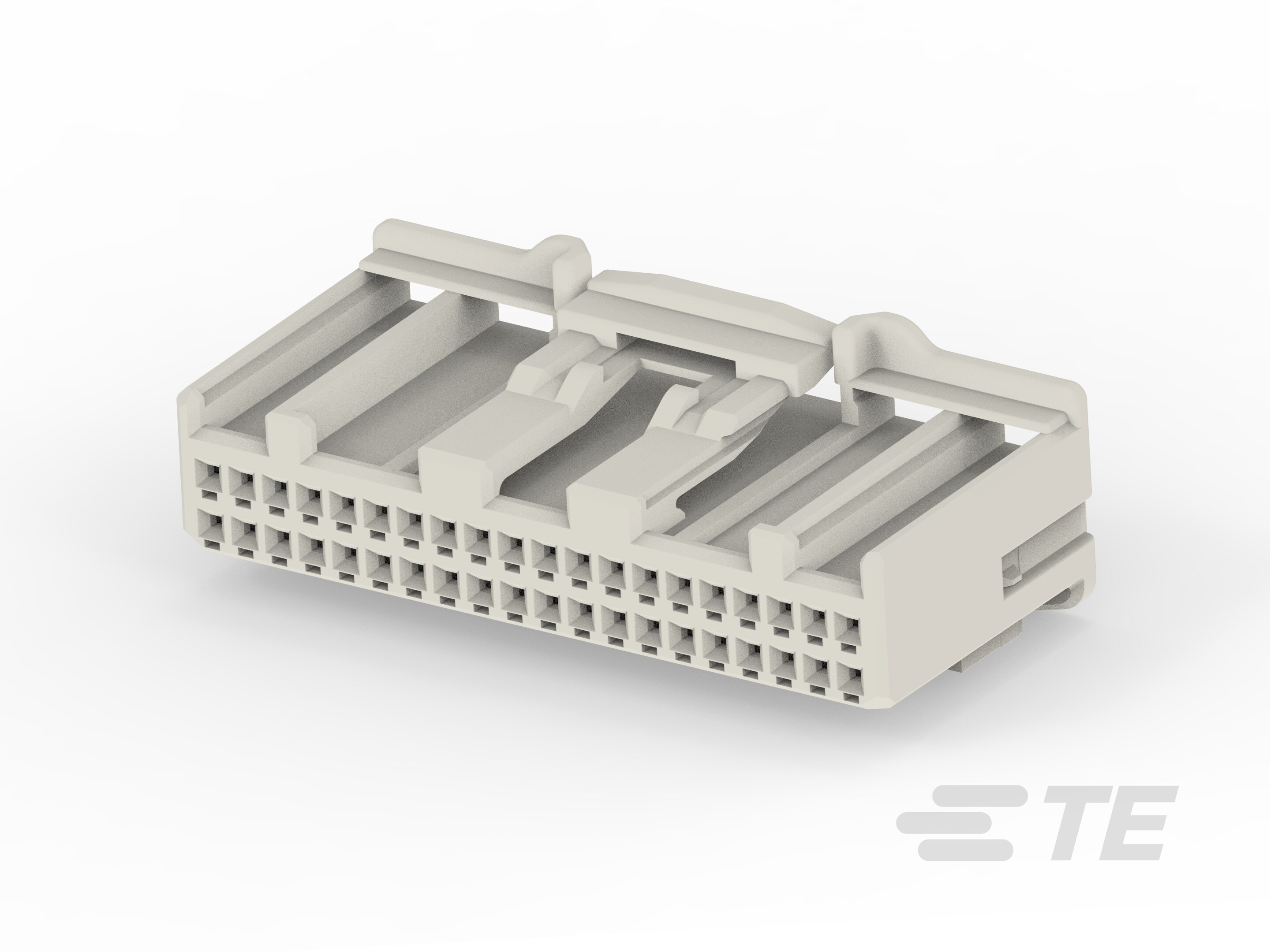

TE Connectivity AMP Connectors 1379671-5	40	2.2 mm	0.087 in	2	Crimp	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Female Socket	Terminal Position Lock (TPA)	Latch Holder	Natural	Housing for Female Insert	-40 C	100 °C	3 mm	0.118 "
TE Connectivity AMP Connectors 1379671-1	40	2.2 mm	0.087 in	2	Crimp	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Female Socket			Black	Plug	-40 C	100 °C			Contacts Not Included
TE Connectivity AMP Connectors 1379671-3	40	2.2 mm	0.087 in	2	Crimp	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Female Socket	Terminal Position Lock (TPA)	Latch Holder	Blue	Housing for Female Insert	-40 C	100 °C	3 mm	0.118 "
TE Connectivity AMP Connectors 1379671-4	40	2.2 mm	0.087 in	2	Crimp	Surface Mount	Polybutylene Terephthalate (PBT)	Female Socket	Terminal Position Lock (TPA)	Latch Holder	Green	Housing for Female Insert	-40 C	100 °C		7.6 mm		0.299 in

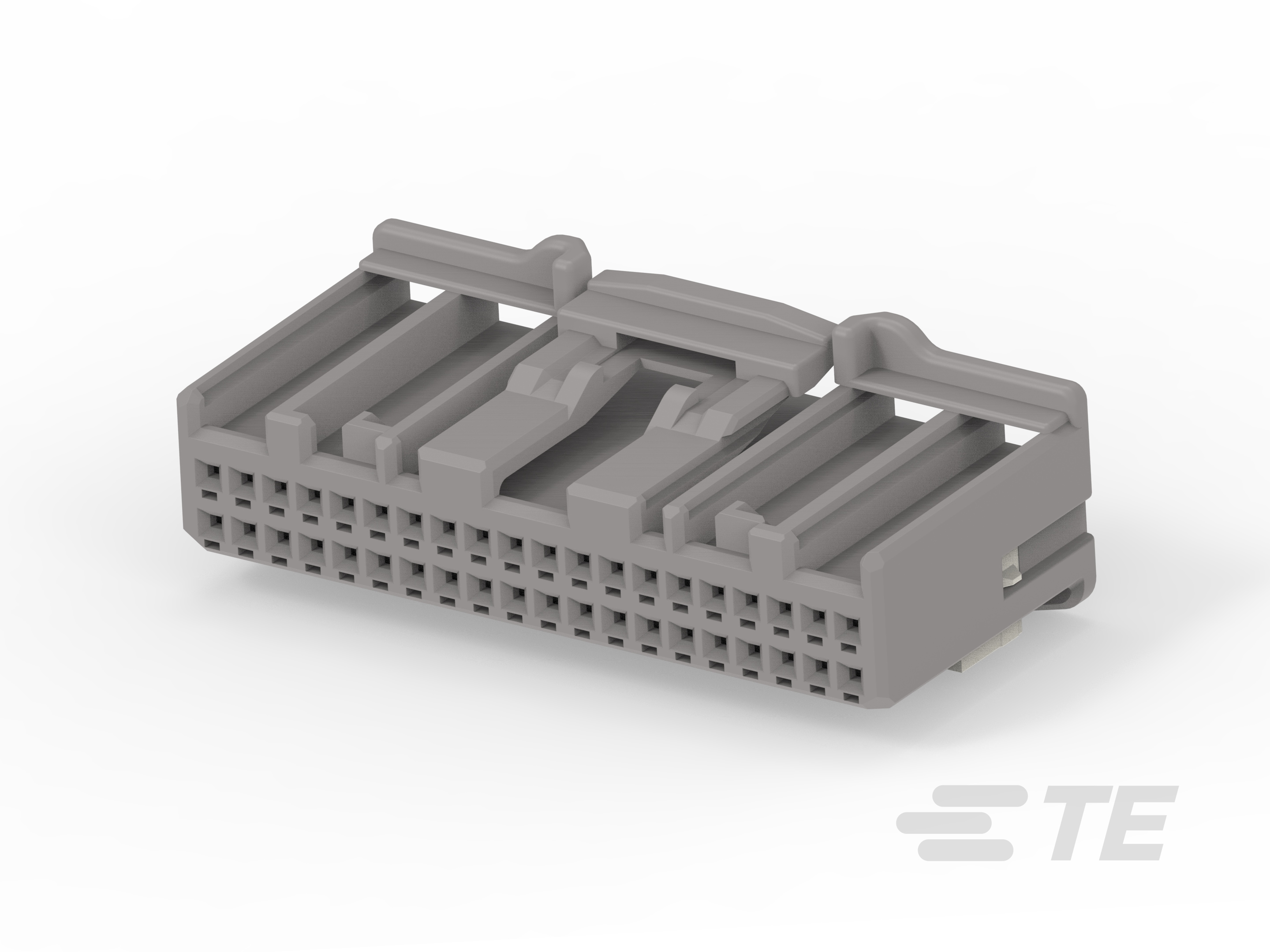

TE Connectivity AMP Connectors 1379671-2	40	2.2 mm	0.087 in	2	Crimp	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Female Socket	Terminal Position Lock (TPA)	Latch Holder	Gray	Housing for Female Insert	-40 C	100 °C	3 mm	0.118 "
