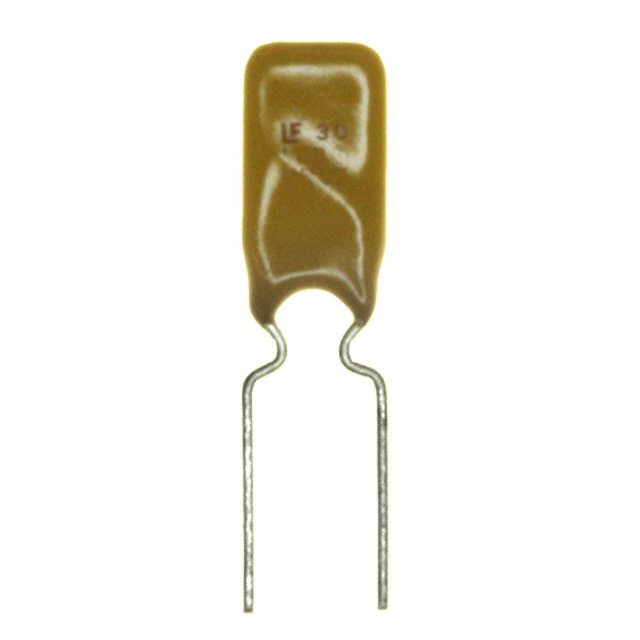

30R110 Series

PTC 30V POLYFUSE AMMO RADIAL LEADS 1.10A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

PTC 30V POLYFUSE AMMO RADIAL LEADS 1.10A

Part	Resistance - Initial (Ri) (Min) [Min]	Approval Agency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Max [Max]	Current - Hold (Ih) (Max) [Max]	Lead Spacing	Lead Spacing	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Time to Trip	Current - Trip (It)	Mounting Type	Type	Resistance - Post Trip (R1) (Max) [Max]
Littelfuse/Commercial Vehicle Products 30R110UPR	50 mOhms	cURus TUV	0.118 in	3 mm	7.4 mm	0.291 "	30 V	1.1 A	5.1 mm	0.201 in	Disc Radial	85 °C	-40 °C	40 A	14.2 mm	0.559 in	6.6 s	2.2 A	Through Hole	Polymeric	170 mOhms
Littelfuse/Commercial Vehicle Products 30R110UU	50 mOhms	cURus TUV	0.118 in	3 mm	7.4 mm	0.291 "	30 V	1.1 A	5.1 mm	0.201 in	Disc Radial	85 °C	-40 °C	40 A	14.2 mm	0.559 in	6.6 s	2.2 A	Through Hole	Polymeric	170 mOhms

Catalog

PTC 30V POLYFUSE AMMO RADIAL LEADS 1.10A

Key Features

• Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements

• Fast time-to-trip

• Lead-free, halogen-free, and RoHS compliant

Description

The 30R series radial leaded device is designed to provide overcurrent protection for low voltage (≤30V) applications where space is not a concern and resettable protection is preferred.
