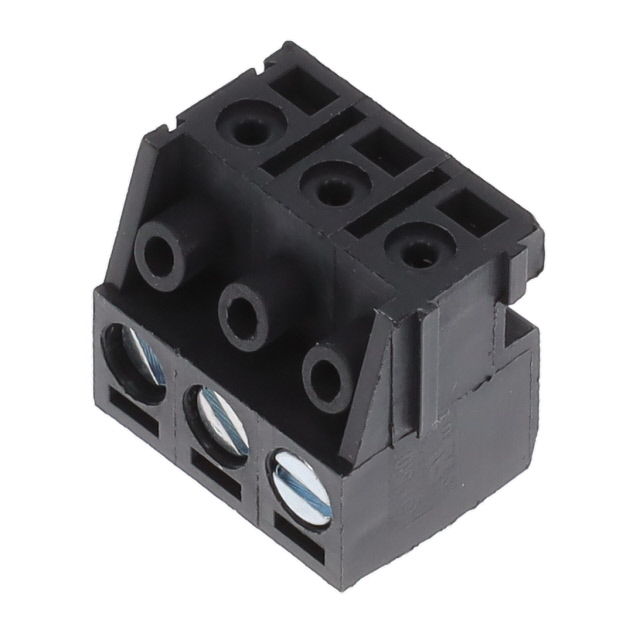

TT030 Series
Manufacturer: Amphenol Anytek
Beta
⌘K
TT 5.0 - 2P SLOT SCREWS ARE PLAT
| Part | Termination Style | Housing Material | Voltage - UL | Wire Strip Length [Min] | Wire Strip Length [Max] | Insulation Height [z] | Insulation Height [z] | Plug Wire Entry | Contact Material | Torque - Screw | Torque - Screw | Contact Mating Finish | Number of Levels | Operating Temperature [Min] | Operating Temperature [Max] | Positions Per Level | Pitch [x] | Pitch [x] | Color | Mounting Type | Features | Type | Current - UL | Screw Size | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Anytek | Screw - Rising Cage Clamp | Thermoplastic | 300 V | 5 mm | 6 mm | 0.449 in | 11.4 mm | 90 ° | Phosphor Bronze | 0.2 Nm | 1.7 Lb-In | Tin | 1 | -40 °C | 115 °C | 3 | 5 mm | 0.197 in | Black | Free Hanging (In-Line) | Interlocking (Side) | Plug for Unshrouded Header | 10 A | M3 | UL94 V-0 |
