2GL54 Series

Catalog

SWITCH TOGGLE DPDT 15A 125V

Part	Electrical Life	Bushing Thread	Voltage Rating - AC	Operating Temperature [Max]	Circuit	Mounting Type	Illumination	Current Rating (Amps)	Switch Function	Termination Style	Actuator Length [x]	Actuator Type	Panel Cutout Dimensions [diameter]
Carling Technologies 2GL54-C3	50000 Cycles	15/32-32	125 V	85 °C	DPDT	Panel Mount	Non-Illuminated	15 A	On-On	Screw Terminal	38.1 mm	Standard Round	12.7 mm
Carling Technologies 2GL54-63	50000 Cycles	15/32-32	125 V	85 °C	DPDT	Panel Mount	Non-Illuminated	15 A	On-On	Screw Terminal	14.28 mm	Standard Round	12.7 mm
Carling Technologies 2GL54-73/728-15946	50000 Cycles	15/32-32	125 V	85 °C	DPDT	Panel Mount	Non-Illuminated	15 A	On-On	Screw Terminal	17.45 mm	Standard Round	12.7 mm

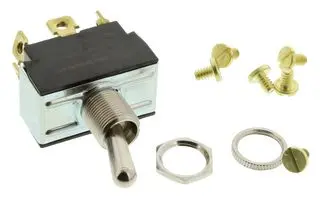

Carling Technologies 2GL54-73	50000 Cycles	15/32-32	125 V	85 °C	DPDT	Panel Mount	Non-Illuminated	15 A	On-On	Screw Terminal	17.45 mm	Standard Round	12.7 mm
