DAC5674 Series
Manufacturer: Texas Instruments
Beta
⌘K
DAC 1-CH SEGMENT 14-BIT 48-PIN HTQFP EP T/R
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Differential Output | INL/DNL (LSB) | Number of Bits | Architecture | Settling Time | Reference Type | Package / Case | Supplier Device Package | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Data Interface | DAC Type | Utilized IC / Part | Supplied Contents | Number of DAC's | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 85 °C | -40 °C | Current - Unbuffered | 1.95 V | 1.65 V | 2 LSB 3.5 LSB | 14 | Current Source | 20 ns | External Internal | 48-PowerTQFP | 48-HTQFP (7x7) | 3.6 V | 3 V | Parallel | ||||||
Texas Instruments | Surface Mount | 48-PowerTQFP | 48-HTQFP (7x7) | |||||||||||||||||||

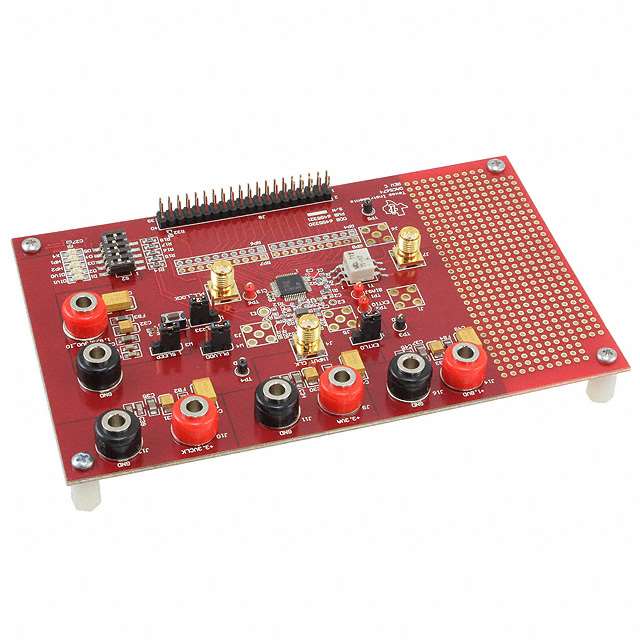

 Texas Instruments | 14 | 20 ns | Parallel | Current | DAC5674 | Board(s) | 1 | 400 M | ||||||||||||||
Texas Instruments | Surface Mount | 125 °C | -55 °C | Current - Unbuffered | 1.95 V | 1.65 V | 2 LSB 3.5 LSB | 14 | Current Source | 20 ns | External Internal | 48-PowerTQFP | 48-HTQFP (7x7) | 3.6 V | 3 V | Parallel | ||||||
 Texas Instruments | Surface Mount | 85 °C | -40 °C | Current - Unbuffered | 1.95 V | 1.65 V | 2 LSB 3.5 LSB | 14 | Current Source | 20 ns | External Internal | 48-PowerTQFP | 48-HTQFP (7x7) | 3.6 V | 3 V | Parallel |
