CAT24C08 Series

EEPROM Serial 8-Kb I2C

Catalog

EEPROM Serial 8-Kb I2C

Part	Memory Format	Memory Type	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Organization	Write Cycle Time - Word, Page	Mounting Type	Memory Interface	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Access Time	Clock Frequency	Package / Case	Package / Case [custom]	Package / Case [custom]	Package / Case [y]	Package / Case [x]
ON Semiconductor CAT24C08C4ATR	EEPROM	Non-Volatile	4-WLCSP	0.86	0.84	5.5 V	1.7 V	1K x 8	5 ms	Surface Mount	I2C	EEPROM	85 °C	-40 °C	8 Kbit	900 ns	400 kHz	4-XFBGA WLCSP
ON Semiconductor CAT24C08YI-GT3JN	EEPROM	Non-Volatile	8-TSSOP			5.5 V	1.7 V	1K x 8	5 ms	Surface Mount	I2C	EEPROM	85 °C	-40 °C	8 Kbit	900 ns	400 kHz	8-TSSOP	0.173 "	4.4 mm
ON Semiconductor CAT24C08WI-GT3JN	EEPROM	Non-Volatile	8-SOIC			5.5 V	1.7 V	1K x 8	5 ms	Surface Mount	I2C	EEPROM	85 °C	-40 °C	8 Kbit	900 ns	400 kHz	8-SOIC			3.9 mm	0.154 in
ON Semiconductor CAT24C08C4CTR	EEPROM	Non-Volatile	4-WLCSP	0.86	0.84	5.5 V	1.7 V	1K x 8	5 ms	Surface Mount	I2C	EEPROM	85 °C	-40 °C	8 Kbit	900 ns	400 kHz	4-XFBGA WLCSP
ON Semiconductor CAT24C08WI-GT3	EEPROM	Non-Volatile	8-SOIC			5.5 V	1.7 V	1K x 8	5 ms	Surface Mount	I2C	EEPROM	85 °C	-40 °C	8 Kbit	900 ns	400 kHz	8-SOIC			3.9 mm	0.154 in

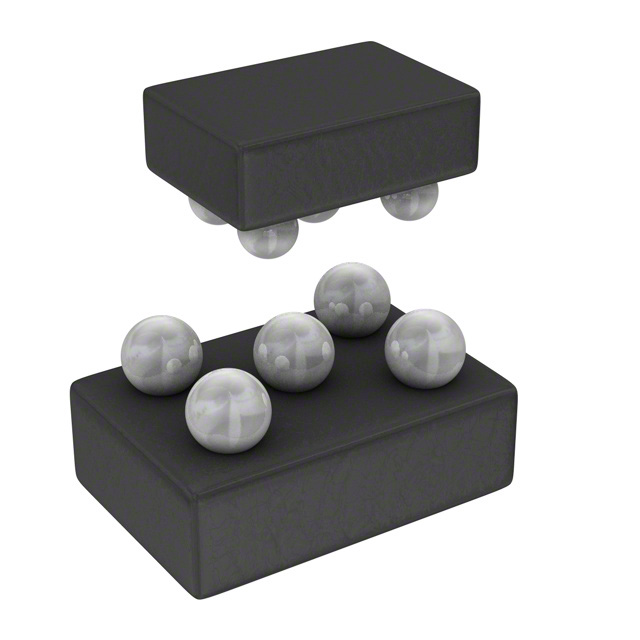

ON Semiconductor CAT24C08C5ATR	EEPROM	Non-Volatile	5-WLCSP	0.84	0.86	5.5 V	1.7 V	1K x 8	5 ms	Surface Mount	I2C	EEPROM	85 °C	-40 °C	8 Kbit	900 ns	400 kHz

Catalog

EEPROM Serial 8-Kb I2C

Key Features

• Supports Standard and Fast I2C Protocol

• 1.7 V to 5.5 V Supply Voltage Range

• 16-Byte Page Write Buffer

• Hardware Write Protection for Entire Memory

• Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA)

• 100 Year Data Retention

• Low Power CMOS Technology

• More than 1,000,000 Program/Erase Cycles

• Industrial Temperature Range

• 8-lead SOIC and TSSOP, WLCSP 4 and 5-ball, 8-pad UDFN and 5-lead TSOT-23 packages

• These Devices are Pb-Free, Halogen Free/BFR Free, and RoHS Compliant

Description

The CAT24C08 is a EEPROM Serial 8-Kb I2C device organized internally as 64 pages of 16 bytes each. This device support both the Standard (100 kHz) as well as Fast (400 kHz) I2C protocol.Data is written by providing a starting address, then loading 1 to 16 contiguous bytes into a Page Write Buffer, and then writing all data to non-volatile memory in one internal write cycle. Data is read by providing a starting address and then shifting out data serially while automatically incrementing the internal address count.External address pins make it possible to address up to two CAT24C08 devices on the same bus.
