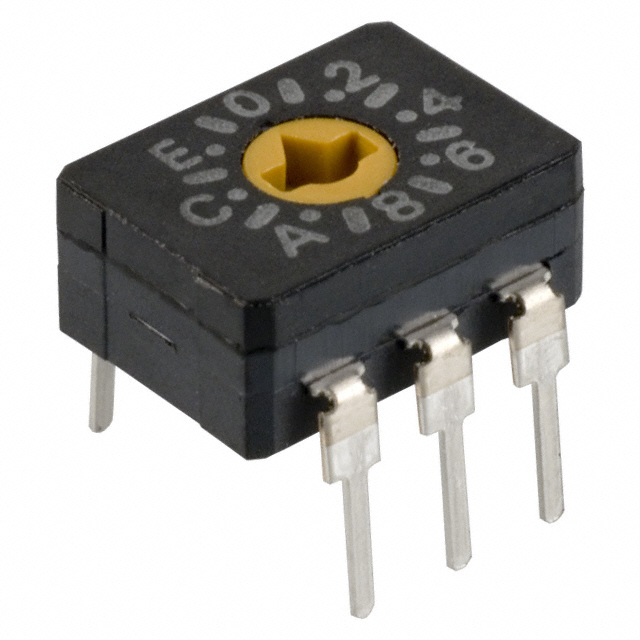

A6C Series
Manufacturer: Omron Electronics Inc-EMC Div
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
ENCODING SWITCH; HEX/BCD; POS: 16; THT; RCONT MAX: 200MΩ; 1NCM; A6C
| Part | Height Above Board | Features | Voltage Rating | Washable | Mounting Type | Current Rating | Circuit | Operating Temperature (Max) | Operating Temperature (Min) | Termination Style | Actuator Type | Pitch | Pitch Type | Actuator Level | Number of Positions | Length | Mechanical Life (Steps) | Electrical Life (Steps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 0.177 in | Dust Tight IP64 Water Resistant | 30 V | No | Through Hole | 100 mA | Hexadecimal | 70 °C | -20 °C | PC Pin | Rotary for Tool | 0.1 in | Full | Flush Recessed | 16 | 0.354 in | 10000 Steps | 2000 |
 Omron Electronics Inc-EMC Div | 0.358 in | Dust Tight IP64 Water Resistant | 30 V | No | Right Angle Through Hole | 100 mA | Hexadecimal | 70 °C | -20 °C | PC Pin | Rotary for Tool | 0.1 in | Full | Flush Recessed | 16 | 0.354 in | 10000 Steps | 2000 |
