1009-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMC M STR EDGE PIN
| Part | Insertion Loss | Body Material | Center Contact Plating | Mating Cycles | Body Finish | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Ports | Center Contact Material | Shield Termination | Connector Type | Impedance | Fastening Type | Connector Style | Mounting Type | Frequency - Max [Max] | Contact Termination | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

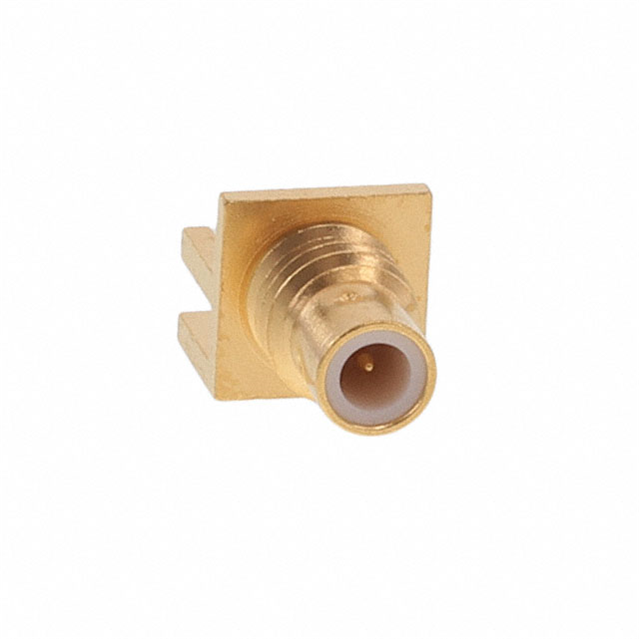

 Radiall USA, Inc. | 0.25 dB | Brass | Gold | 500 | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 1 | Brass | Solder | Jack Male Pin | 50 Ohms | Threaded | SMC | Board Edge End Launch | 10 GHz | Solder | Gold |

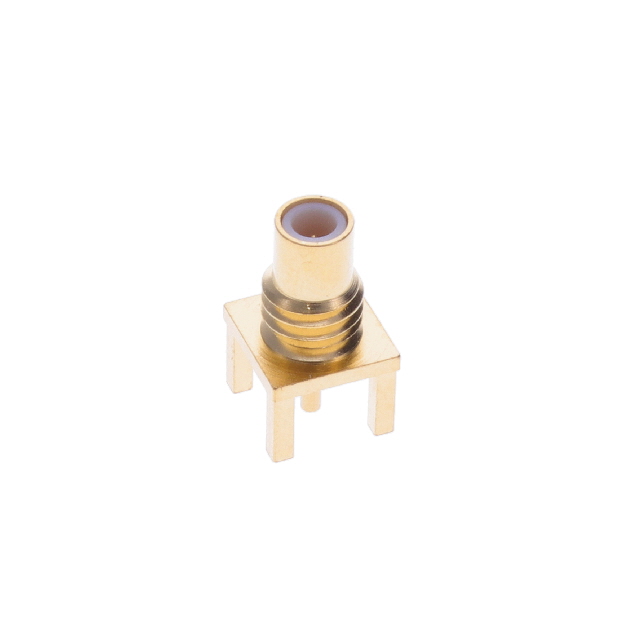

 Radiall USA, Inc. | 0.25 dB | Brass | Gold | 500 | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 1 | Brass | Solder | Jack Male Pin | 50 Ohms | Threaded | SMC | Through Hole | 10 GHz | Solder | Gold |
