29K10H Series
Manufacturer: Rosenberger
Beta
⌘K

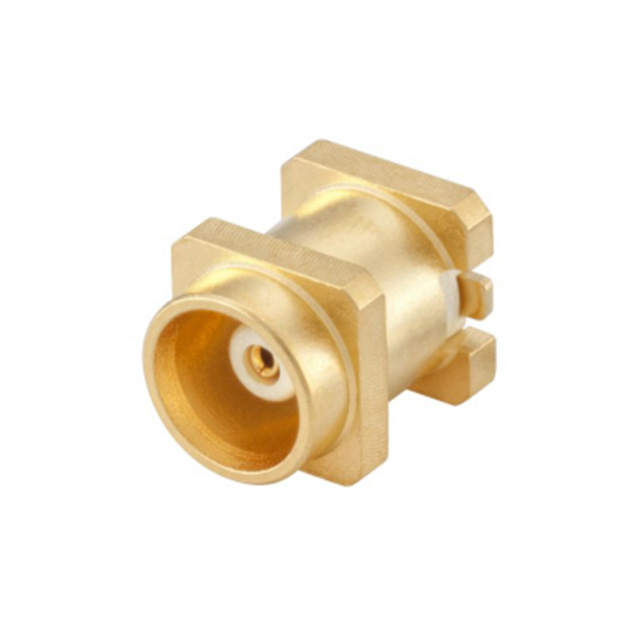

CONN MCX JACK STR 50OHM SMD
| Part | Dielectric Material | Mating Cycles | Center Contact Plating | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Body Finish | Connector Type | Impedance | Housing Color | Shield Termination | Mounting Type | Number of Ports | Center Contact Material | Fastening Type | Connector Style | Frequency - Max [Max] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Liquid Crystal Polymer (LCP) | 500 | Gold | Brass | 155 C | -55 C | 335 V | Gold | Female Socket Jack | 50 Ohms | Gold | Solder | Surface Mount | 1 | Beryllium Copper | Snap-On | MCX | 6000 MHz | Solder |
