FI-X20 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN PLUG HSG 20POS 1.00MM
| Part | Note | Mounting Type | Number of Rows | Number of Positions | Pitch | Pitch | Contact Termination | Connector Type | Contact Type | Wire Type | Color | Contact Finish | Fastening Type | Insulation Material | Contact Material | Applications | Features | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Finish - Mating | Insulation Height | Insulation Height | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Insulation Color | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Contacts Not Included | Free Hanging (In-Line) | 1 | 20 | 1 mm | 0.039 in | Crimp | Plug | Male Pin | |||||||||||||||||||||||||
 JAE Electronics | Free Hanging (In-Line) | 1 | 20 | 1 mm | 0.039 in | Plug | Flat Flexible Cable | Beige | Gold | Friction Lock | ||||||||||||||||||||||||

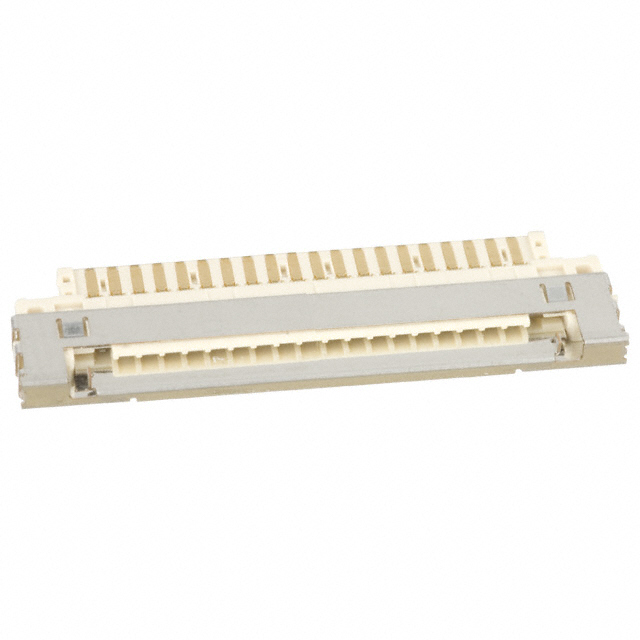

JAE Electronics | Right Angle Surface Mount | 1 | 20 | Receptacle | Non-Gendered | Friction Lock | Plastic | Copper Alloy | General Purpose | Grounding Pins Shielded Solder Retention | 1 A | 80 °C | -40 C | UL94 V-0 | Gold | 0.061 in | 1.55 mm | Board to Cable/Wire | 3.9 µin | 0.099 µm | Solder | Beige | Tin | 1 mm | 0.039 in | All | 200 V |
