6599-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

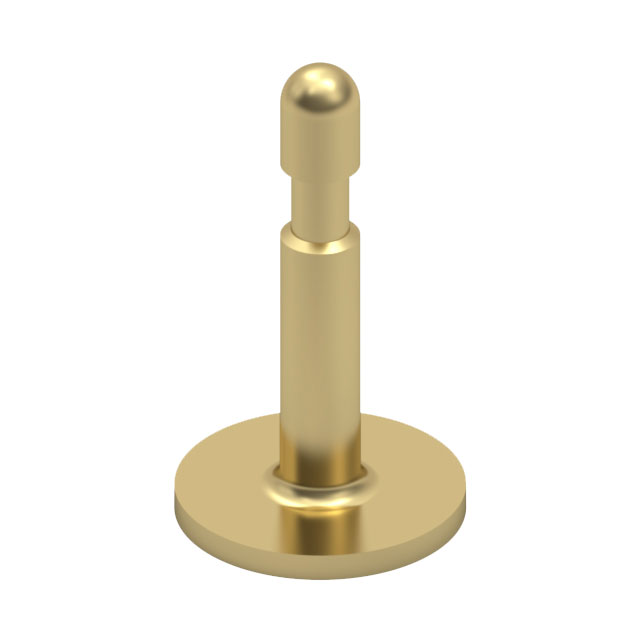

.125" LONG NAIL HEAD PIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Style | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Insulation | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.25 Ám | 10 Áin | Solder | Through Hole | 0.02 in | 0.51 mm | Nail Head Single End | 0.118 in | 3 mm | 0.61 mm | 0.024 in | Brass Alloy | Non-Insulated | Gold | 0.072 " | 1.83 mm | PC Pin | 0.125 in | 3.18 mm |
