326875 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

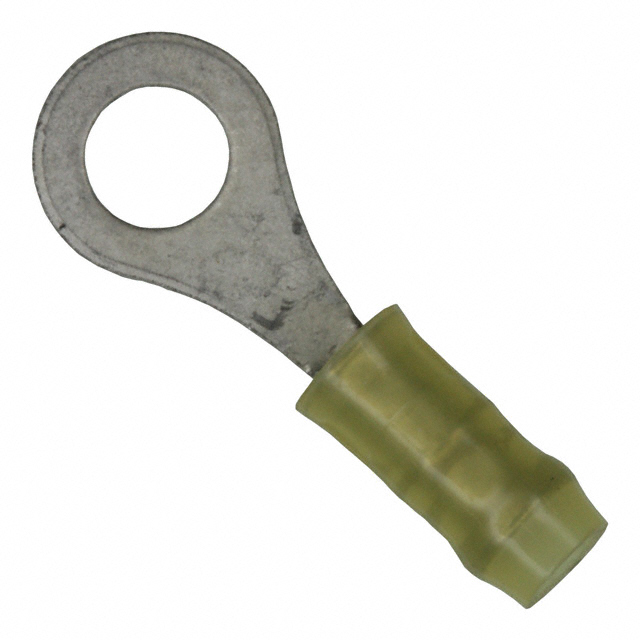

CONN RING CIRC 22-26AWG #6 CRIMP
| Part | Termination | Thickness [custom] | Thickness [custom] | Features | Mounting Type | Terminal Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Insulation | Color | Contact Material | Stud/Tab Size | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Material - Insulation | Contact Finish | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | 0.46 mm | 0.018 in | Serrated Termination | Free Hanging (In-Line) | Circular | 0.25 " | 6.35 mm | Insulated | Yellow | Copper | 6 Stud | 0.082 " | 2.08 mm | 0.05 in | 1.27 mm | Nylon Polyamide (PA) | Tin | 18.8 mm | 0.74 in | 22 AWG | 26 AWG |
