R16240 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

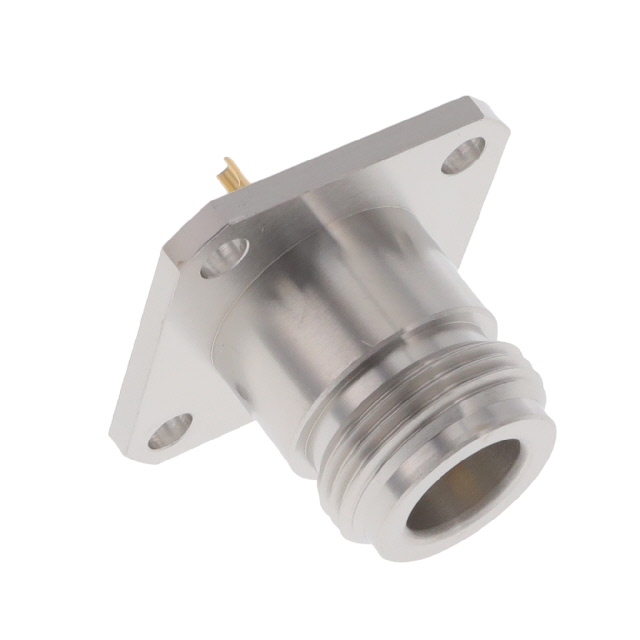

N / FLANGE RECEPTACLE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Material | Dielectric Material | Voltage Rating | Center Contact Plating | Insertion Loss | Body Finish | Connector Style | Fastening Type | Housing Color | Number of Ports | Connector Type | Frequency - Max [Max] | Center Contact Material | Mounting Type | Impedance | Shield Termination | Contact Termination | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 155 C | -55 C | 500 | Brass | Polytetrafluoroethylene (PTFE) | 850 V | Gold | 0.15 dB | White Bronze | N Type | Threaded | Silver | 1 | Female Socket Jack | 1.5 GHz | Beryllium Copper | Panel Mount | 75 Ohms | Solder | Solder Cup | Flange |
