8P1P005 Series

Catalog

CIRCULAR CONNECTOR, QUIK-LOQ 8P1P SERIES, BULKHEAD RECEPTACLE, 5 CONTACTS, PCB SOCKET

Part	Contact Finish - Mating	Mounting Feature	Shielding	Voltage Rating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Insert Material	Color	Termination	Current Rating (Amps)	Ingress Protection	Orientation	Contact Material	Number of Positions	Mounting Type	Connector Type	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Features
NorComp Inc. 8P1P005210ARB01	Gold	Bulkhead - Front Side Nut	Unshielded	500 V	Push-Pull	120 °C	-20 ░C	Plastic	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Polyphenylene Sulfide (PPS)	Blue Gray	Solder	8 A	IP50 - Dust Protected	Keyed	Copper Alloy	5	Panel Mount Through Hole	Receptacle Female Sockets

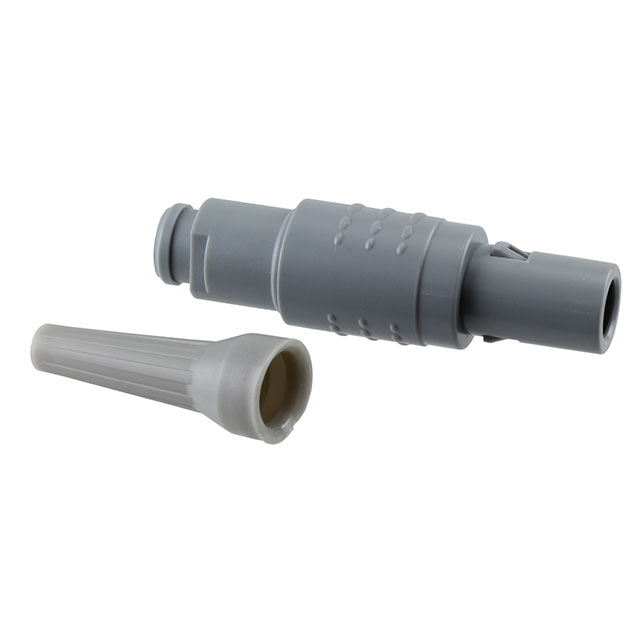

NorComp Inc. 8P1P00517BAL621	Gold		Unshielded	500 V	Push-Pull	120 °C	-20 ░C	Plastic	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Polyphenylene Sulfide (PPS)	Blue Gray		8 A	IP50 - Dust Protected	Keyed	Copper Alloy	5	Free Hanging (In-Line)	Plug Male Pins	6 mm	0.236 in	5 mm	0.197 in	Backshell Strain Relief
NorComp Inc. 8P1P00517NNL521	Gold		Unshielded	500 V	Push-Pull	120 °C	-20 ░C	Plastic	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Polyphenylene Sulfide (PPS)			8 A	IP50 - Dust Protected	Keyed	Copper Alloy	5	Free Hanging (In-Line)	Plug Male Pins	5 mm	0.197 in	4 mm	0.157 in
NorComp Inc. 8P1P00517NGL421	Gold		Unshielded	500 V	Push-Pull	120 °C	-20 ░C	Plastic	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Polyphenylene Sulfide (PPS)	Gray		8 A	IP50 - Dust Protected	Keyed	Copper Alloy	5	Free Hanging (In-Line)	Plug Male Pins	3.99 mm	0.157 in	2.2 mm	0.087 in
NorComp Inc. 8P1P00517BNL521	Gold		Unshielded	500 V	Push-Pull	120 °C	-20 ░C	Plastic	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Polyphenylene Sulfide (PPS)			8 A	IP50 - Dust Protected	Keyed	Copper Alloy	5	Free Hanging (In-Line)	Plug Male Pins	5 mm	0.197 in	4 mm	0.157 in	Backshell Strain Relief

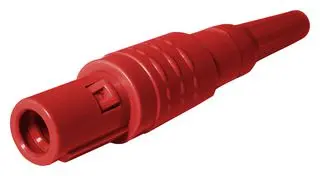

NorComp Inc. 8P1P00517BRL621	Gold		Unshielded	500 V	Push-Pull	120 °C	-20 ░C	Plastic	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Polyphenylene Sulfide (PPS)	Gray Red		8 A	IP50 - Dust Protected	Keyed	Copper Alloy	5	Free Hanging (In-Line)	Plug Male Pins	6 mm	0.236 in	5 mm	0.197 in	Backshell Strain Relief
NorComp Inc. 8P1P00517NGL521	Gold		Unshielded	500 V	Push-Pull	120 °C	-20 ░C	Plastic	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Polyphenylene Sulfide (PPS)	Gray		8 A	IP50 - Dust Protected	Keyed	Copper Alloy	5	Free Hanging (In-Line)	Plug Male Pins	5 mm	0.197 in	4 mm	0.157 in
NorComp Inc. 8P1P00517BGL621	Gold		Unshielded	500 V	Push-Pull	120 °C	-20 ░C	Plastic	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Polyphenylene Sulfide (PPS)	Gray		8 A	IP50 - Dust Protected	Keyed	Copper Alloy	5	Free Hanging (In-Line)	Plug Male Pins	6 mm	0.236 in	5 mm	0.197 in	Backshell Strain Relief
NorComp Inc. 8P1P00517NAL421	Gold		Unshielded	500 V	Push-Pull	120 °C	-20 ░C	Plastic	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Polyphenylene Sulfide (PPS)	Blue Gray		8 A	IP50 - Dust Protected	Keyed	Copper Alloy	5	Free Hanging (In-Line)	Plug Male Pins	3.99 mm	0.157 in	2.2 mm	0.087 in
NorComp Inc. 8P1P00517BVL621	Gold		Unshielded	500 V	Push-Pull	120 °C	-20 ░C	Plastic	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Polyphenylene Sulfide (PPS)	Gray Green		8 A	IP50 - Dust Protected	Keyed	Copper Alloy	5	Free Hanging (In-Line)	Plug Male Pins	6 mm	0.236 in	5 mm	0.197 in	Backshell Strain Relief
