LHB-09 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER VERT 9POS 3.96MM
| Part | Contact Shape | Insulation Color | Contact Material | Number of Positions | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Current Rating (Amps) | Termination | Contact Finish - Post | Connector Type | Voltage Rating | Contact Length - Mating | Contact Length - Mating | Number of Rows | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height | Mounting Type | Overall Contact Length | Overall Contact Length | Shrouding | Material Flammability Rating | Contact Type | Contact Length - Post | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

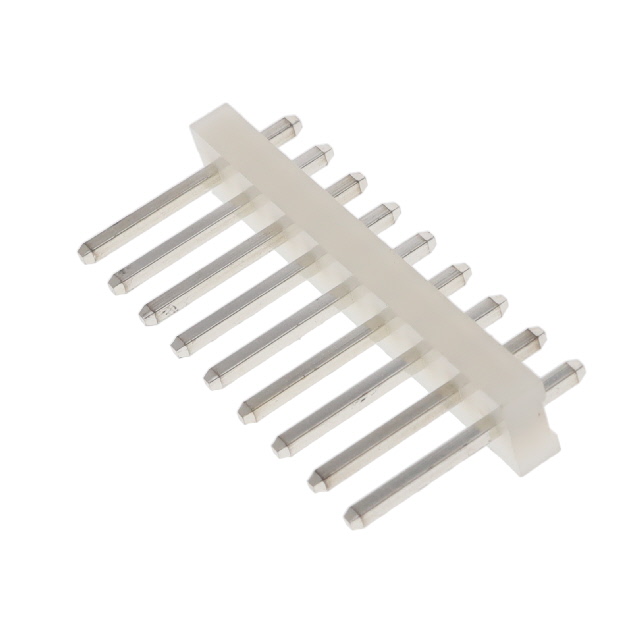

 Adam Tech | Square | White | Brass | 9 | Push-Pull | 105 ░C | -25 °C | 3.81 mm | 0.15 in | Nylon 6/6 Polyamide (PA66) | 7 A | Solder | Tin | Header | 250 VAC | 0.413 in | 10.5 mm | 1 | All | 3.96 mm | 0.156 in | 0.126 " | 3.2 mm | Through Hole | 17.5 mm | 0.689 in | Unshrouded | UL94 V-2 | Male Pin | ||

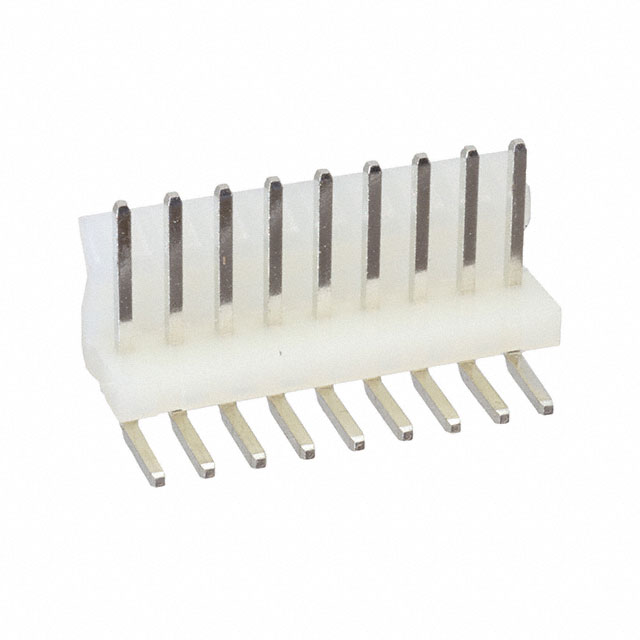

 Adam Tech | Square | White | Brass | 9 | Friction Lock | 85 °C | -25 °C | 0.134 " | Nylon 6/6 Polyamide (PA66) | 5 A | Solder | Tin | Header | 250 VAC | 0.445 in | 11.3 mm | 1 | All | 3.96 mm | 0.156 in | Right Angle Through Hole | Shrouded - 1 Wall | UL94 V-2 | Male Pin | 3.4 mm | Board to Cable/Wire |
