Kst0 Series Series

Long Travel Tact Switch For SMT

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Long Travel Tact Switch For SMT

Part	Termination Style	Operating Force	Outline [y]	Outline [x]	Mounting Type	Actuator Type	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Height off PCB, Vertical	Switch Travel	Ingress Protection	Contact Rating @ Voltage	Actuator Material	Circuit	Mechanical Life	Actuator Orientation

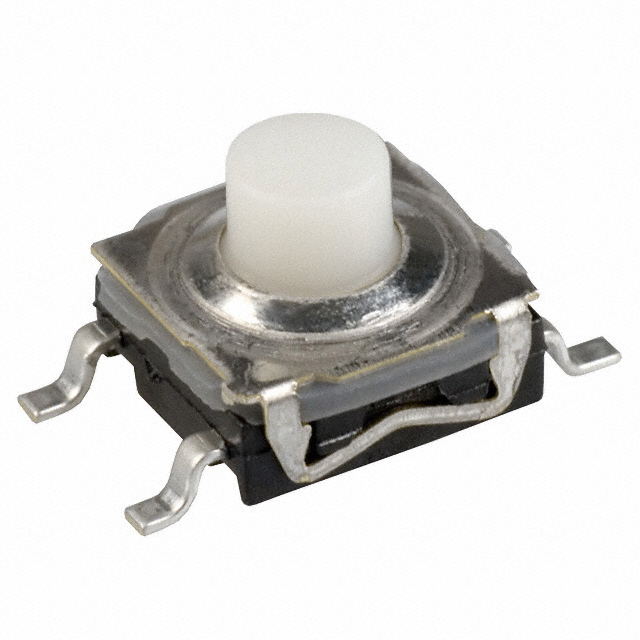

Littelfuse/Commercial Vehicle Products KST241GLFS	Gull Wing	350 gf	6.2 mm	6.2 mm	Surface Mount	Standard	Non-Illuminated	85 °C	-40 °C	Off-Mom	5 mm	1.3 mm	IP40	0.05 A	Rubber	SPST-NO	100000 Cycles	Top Actuated

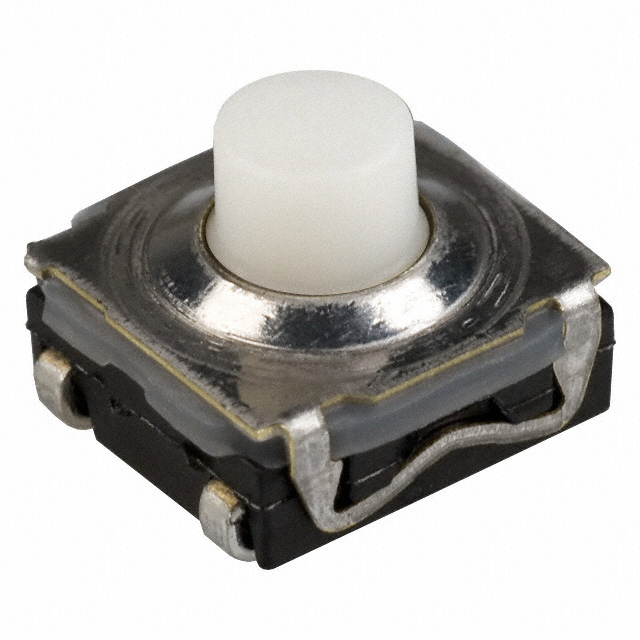

Littelfuse/Commercial Vehicle Products KST241J	J Lead	350 gf	6.2 mm	6.2 mm	Surface Mount	Standard	Non-Illuminated	85 °C	-40 °C	Off-Mom	5 mm	1.3 mm	IP40	0.05 A	Rubber	SPST-NO	100000 Cycles	Top Actuated

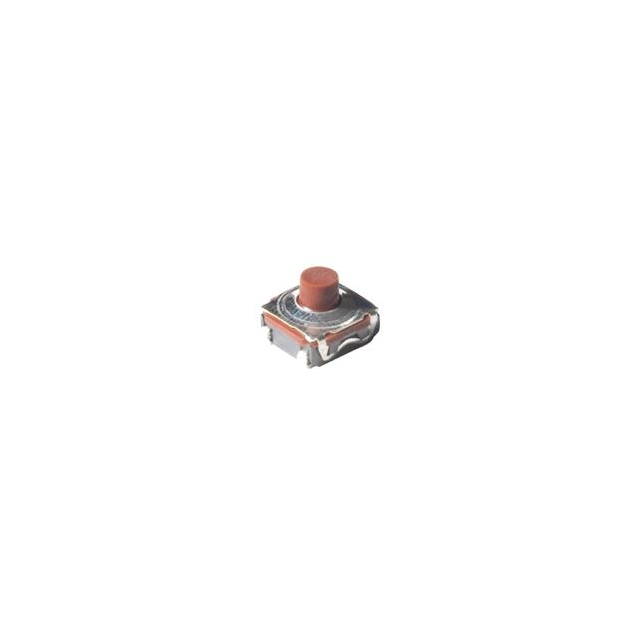

Littelfuse/Commercial Vehicle Products KST223GLFG	Gull Wing	200 gf	6.2 mm	6.2 mm	Surface Mount	Standard	Non-Illuminated	125 °C	-40 °C	Off-Mom	5 mm	1.3 mm	IP40	0.01 A 32 VDC	Rubber	SPST-NO	100000 Cycles	Top Actuated
Littelfuse/Commercial Vehicle Products KST241G	Gull Wing	350 gf	6.2 mm	6.2 mm	Surface Mount	Standard	Non-Illuminated	85 °C	-40 °C	Off-Mom	5 mm	1.3 mm	IP40	0.05 A	Rubber	SPST-NO	100000 Cycles	Top Actuated
Littelfuse/Commercial Vehicle Products KST243GLFG	Gull Wing	350 gf	6.2 mm	6.2 mm	Surface Mount	Standard	Non-Illuminated	125 °C	-40 °C	Off-Mom	5 mm	1.3 mm	IP40	0.01 A 32 VDC	Rubber	SPST-NO	100000 Cycles	Top Actuated
Littelfuse/Commercial Vehicle Products KST241JLFS	J Lead	350 gf	6.2 mm	6.2 mm	Surface Mount	Standard	Non-Illuminated	85 °C	-40 °C	Off-Mom	5 mm	1.3 mm	IP40	0.05 A	Rubber	SPST-NO	100000 Cycles	Top Actuated
Littelfuse/Commercial Vehicle Products KST221GLFS	Gull Wing	200 gf	6.2 mm	6.2 mm	Surface Mount	Standard	Non-Illuminated	85 °C	-40 °C	Off-Mom	5 mm	1.3 mm	IP40	0.05 A	Rubber	SPST-NO	100000 Cycles	Top Actuated
Littelfuse/Commercial Vehicle Products KST223JLFG	J Lead	200 gf	6.2 mm	6.2 mm	Surface Mount	Standard	Non-Illuminated	125 °C	-40 °C	Off-Mom	5 mm	1.3 mm	IP40	0.01 A 32 VDC	Rubber	SPST-NO	100000 Cycles	Top Actuated
Littelfuse/Commercial Vehicle Products KST221J	J Lead	200 gf	6.2 mm	6.2 mm	Surface Mount	Standard	Non-Illuminated	85 °C	-40 °C	Off-Mom	5 mm	1.3 mm	IP40	0.05 A	Rubber	SPST-NO	100000 Cycles	Top Actuated

Catalog

Long Travel Tact Switch For SMT

Key Features

• Rubber actuator

• Compatible with pick and place machines

• IP40 sealed

Description

C&K’s KST series is an IP40 rated seal switch, and is ideal for car dashboards and front panel applications. KST also has a contact rating of 10mA (gold) and 50mA (silver), features a rubber actuator and is compatible with pick and place machines.
