ECLAMP2508 Series
Manufacturer: Semtech Corporation
Beta
⌘K

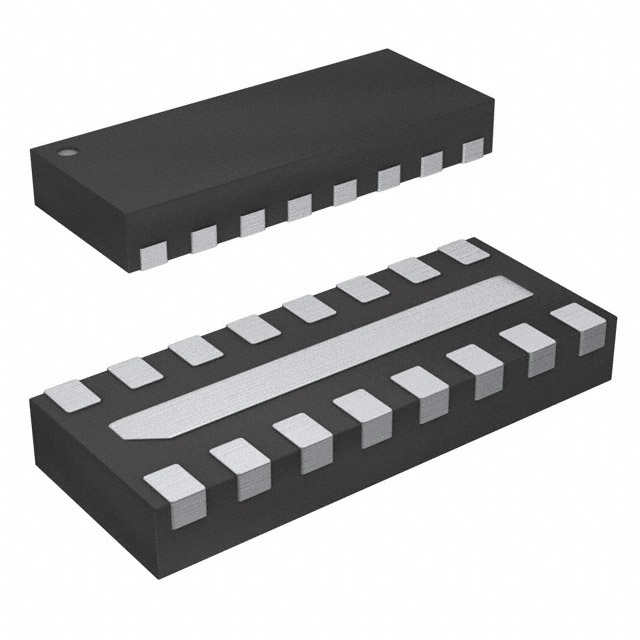

ECLAMP ESD/EMI PROTECTION FOR COLOR LCD INTERFACES BI-DIRECTIONAL 20DB 5V 16-PIN SLP3313P16 T/R
| Part | Center / Cutoff Frequency | Attenuation Value | Applications | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Number of Channels | Height [z] | Height [z] | Operating Temperature [Max] | Operating Temperature [Min] | ESD Protection | Technology | Values | Mounting Type | Resistance - Channel (Ohms) | Package / Case | Filter Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Semtech Corporation | 250 MHz | 20 dB | Data Lines for Mobile Devices | Low Pass | 3.3 mm | 0.13 " | 1.3 mm | 0.051 in | 8 | 0.55 mm | 0.022 in | 85 °C | -40 C | LC | 12 pF 17 nH | Surface Mount | 18 Ohms | 16-UFDFN Exposed Pad | 3rd |
