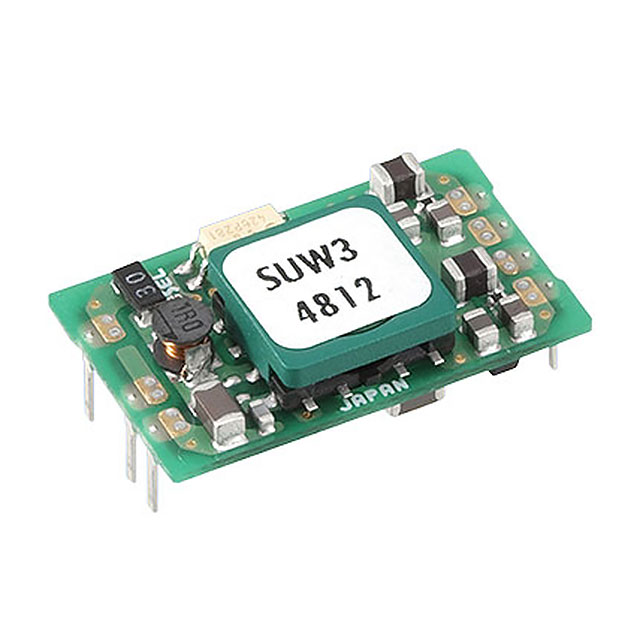

SUW31212 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER +/-12V
| Part | Type | Applications | Voltage - Input (Min) [Min] | Voltage - Isolation | Voltage - Input (Max) [Max] | Package / Case | Voltage - Output 1 | Number of Outputs | Current - Output (Max) | Current - Output (Max) | Voltage - Output 2 | Features | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | Isolated Module | ITE (Commercial) | 9 V | 500 V | 18 V | 7-DIP Module | 12 V | 2 | 130 mA | 130 mA | -12 V | OCP Remote On/Off | 78 % | -40 °C | 85 °C | Through Hole | 0.59 in | 0.94 in | 24 mm | 6.5 mm | 15.1 mm | 0.26 in |
