ENG.0B Series
Manufacturer: LEMO
Beta
⌘K

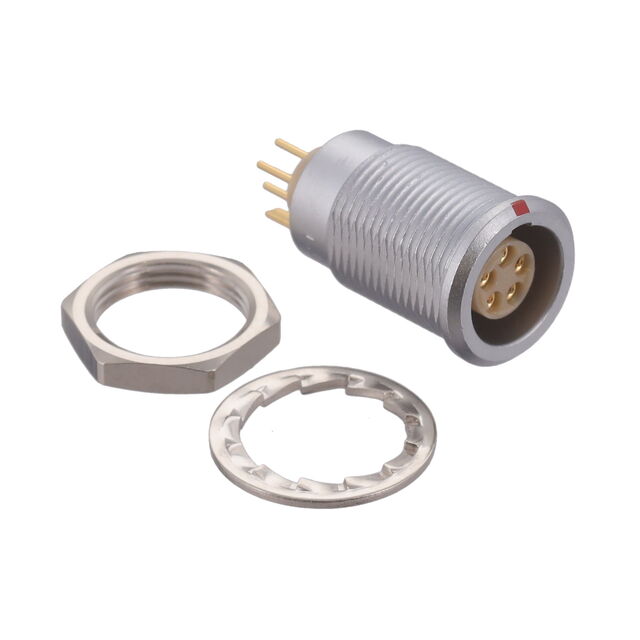

CONN RCPT FMALE 5P GOLD SLDR CUP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Insert Material | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shell Material | Contact Finish - Mating | Shell Size - Insert | Mounting Type | Orientation [custom] | Features | Color | Primary Material | Shell Finish | Ingress Protection | Material Flammability Rating | Shielding | Number of Positions | Fastening Type | Current Rating (Amps) | Shell Size - Insert [custom] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | 1.5 Ám | 59 Áin | Bronze | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | -55 C | 250 °C | Receptacle Female Sockets | Brass | Gold | 305 | Panel Mount | G | Ground | Silver | Metal | Chrome | IP50 - Dust Protected | UL94 V-0 | Shielded | 5 | Push-Pull | 6.5 A | ||
LEMO | 1.5 Ám | 59 Áin | Bronze | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | -55 C | 250 °C | Receptacle Female Sockets | Brass | Gold | Panel Mount | G | Ground | Silver | Metal | Chrome | IP50 - Dust Protected | UL94 V-0 | Shielded | 7 | Push-Pull | 2.5 A | 307 | ||
LEMO | 1.5 Ám | 59 Áin | Bronze | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | -55 C | 250 °C | Receptacle Female Sockets | Brass | Gold | 304 | Panel Mount | G | Ground | Silver | Metal | Chrome | IP50 - Dust Protected | UL94 V-0 | Shielded | 4 | Push-Pull | 7 A | ||
 LEMO | 1.5 Ám | 59 Áin | Bronze | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | -55 C | 250 °C | Receptacle Female Sockets | Brass | Gold | 305 | Panel Mount Through Hole | G | Ground | Silver | Metal | Chrome | IP50 - Dust Protected | UL94 V-0 | Shielded | 5 | Push-Pull | 6.5 A | Solder |
