Buccaneer 900 Series

Catalog

CONN CIRCULAR PIN 4 POS SCREW ST CABLE MOUNT 4 TERMINAL 1 PORT BUCCANEER® BULK

Part	Color	Current Rating (Amps)	Number of Positions	Cable Opening [Max]	Cable Opening [Min]	Contact Material	Ingress Protection	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Material Flammability Rating	Connector Type	Primary Material	Fastening Type	Shielding	Mounting Type	Contact Finish - Mating	Features	Termination	Orientation	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]
BULGIN LIMITED PX0921/04/P	Black	32 A	4	0.512 in 13 mm	0.276 " 7 mm	Brass	IP68 IP69K	600 VAC	85 °C	-40 C	Nylon Polyamide (PA)	UL94 V-0	Receptacle Male Pins	Plastic	Threaded	Unshielded	Free Hanging (In-Line)	Nickel	Backshell UV Resistant	Screw	Keyed
BULGIN LIMITED PX0911/04/S/01	Black Blue	32 A	4	0.354 in 9 mm	0.276 " 7 mm	Brass	IP68 IP69K	600 VAC	85 °C	-40 C	Nylon Polyamide (PA)	UL94 V-0	Plug Female Sockets	Plastic	Threaded	Unshielded	Free Hanging (In-Line)	Nickel	Backshell Coupling Nut UV Resistant	Screw	Keyed
BULGIN LIMITED PXA911/03/S	Black Blue	32 A	3	0.866 in	0.787 in	Brass	IP68 IP69K	600 VAC	85 °C	-40 C	Nylon Polyamide (PA)	UL94 V-0	Plug Female Sockets	Plastic	Threaded	Unshielded	Free Hanging (In-Line)	Nickel	Backshell Cable Clamp Coupling Nut UV Resistant	Screw	Keyed	20 mm	22 mm

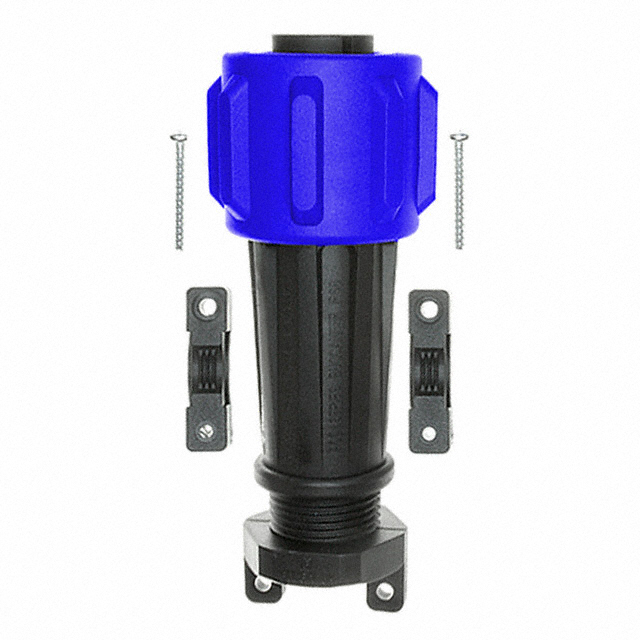

BULGIN LIMITED PXA911/10/S	Black Blue	10 A	10	0.866 in	0.787 in	Brass	IP68 IP69K	250 VAC	85 °C	-40 C	Nylon Polyamide (PA)	UL94 V-0	Plug Female Sockets	Plastic	Threaded	Unshielded	Free Hanging (In-Line)	Nickel	Backshell Cable Clamp Coupling Nut UV Resistant	Screw	Keyed	20 mm	22 mm
BULGIN LIMITED PX0911/04/S	Black Blue	32 A	4	0.591 in	0.512 "	Brass	IP68 IP69K	600 VAC	85 °C	-40 C	Nylon Polyamide (PA)	UL94 V-0	Plug Female Sockets	Plastic	Threaded	Unshielded	Free Hanging (In-Line)	Nickel	Backshell Coupling Nut UV Resistant	Screw	Keyed	13 mm		15 mm

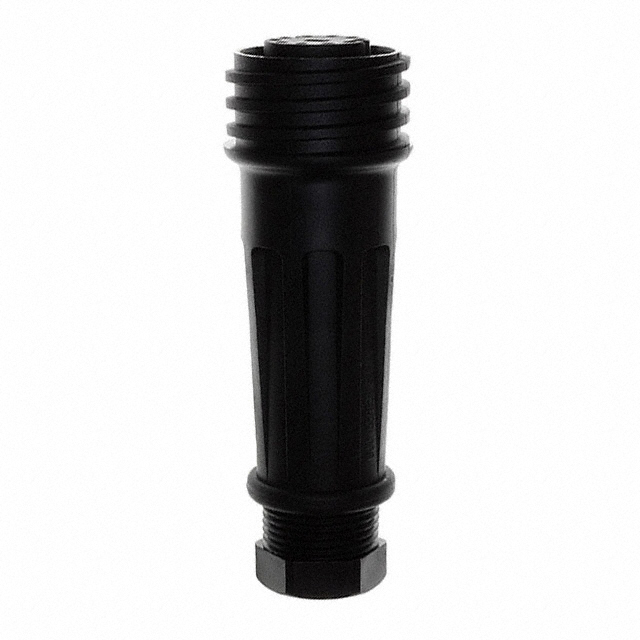

BULGIN LIMITED PX0921/10/S	Black	10 A	10	0.512 in 0.591 in 13 mm	0.276 " 0.512 " 7 mm	Brass	IP68 IP69K	250 VAC	85 °C	-40 C	Nylon Polyamide (PA)	UL94 V-0	Receptacle Female Sockets	Plastic	Threaded	Unshielded	Free Hanging (In-Line)	Nickel	Backshell UV Resistant	Screw	Keyed	13 mm		15 mm
