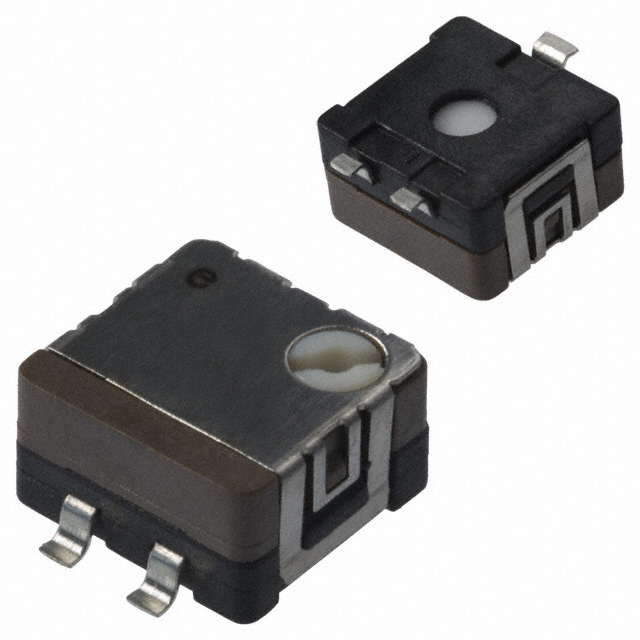

ST7ETB Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 100K OHM 0.25W GW TOP

Part	Adjustment Type	Resistive Material	Number of Turns	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Temperature Coefficient	Tolerance	Resistance	Termination Style	Power (Watts)	Power (Watts)	Mounting Type
Nidec Components Corporation ST-7ETB104	Top Adjustment	Cermet	3	6.4 mm	0.252 "	6.1 mm	0.24 in	100 ppm/°C	20 %	100 kOhms	Gull Wing	0.25 W	0.25 W	Surface Mount
Nidec Components Corporation ST-7ETB502	Top Adjustment	Cermet	3	6.4 mm	0.252 "	6.1 mm	0.24 in	100 ppm/°C	20 %	5 kOhms	Gull Wing	0.25 W	0.25 W	Surface Mount
Nidec Components Corporation ST-7ETB103	Top Adjustment	Cermet	3	6.4 mm	0.252 "	6.1 mm	0.24 in	100 ppm/°C	20 %	10000 Ohms	Gull Wing	0.25 W	0.25 W	Surface Mount
Nidec Components Corporation ST-7ETB504	Top Adjustment	Cermet	3	6.4 mm	0.252 "	6.1 mm	0.24 in	100 ppm/°C	20 %		Gull Wing	0.25 W	0.25 W	Surface Mount
Nidec Components Corporation ST-7ETB201	Top Adjustment	Cermet	3	6.4 mm	0.252 "	6.1 mm	0.24 in	100 ppm/°C	20 %	200 Ohms	Gull Wing	0.25 W	0.25 W	Surface Mount
Nidec Components Corporation ST-7ETB101	Top Adjustment	Cermet	3	6.4 mm	0.252 "	6.1 mm	0.24 in	100 ppm/°C	20 %	100 Ohms	Gull Wing	0.25 W	0.25 W	Surface Mount
Nidec Components Corporation ST-7ETB203	Top Adjustment	Cermet	3	6.4 mm	0.252 "	6.1 mm	0.24 in	100 ppm/°C	20 %	20 kOhms	Gull Wing	0.25 W	0.25 W	Surface Mount
Nidec Components Corporation ST-7ETB102	Top Adjustment	Cermet	3	6.4 mm	0.252 "	6.1 mm	0.24 in	100 ppm/°C	20 %	1000 Ohms	Gull Wing	0.25 W	0.25 W	Surface Mount
Nidec Components Corporation ST-7ETB503	Top Adjustment	Cermet	3	6.4 mm	0.252 "	6.1 mm	0.24 in	100 ppm/°C	20 %	50000 Ohms	Gull Wing	0.25 W	0.25 W	Surface Mount
Nidec Components Corporation ST-7ETB105	Top Adjustment	Cermet	3	6.4 mm	0.252 "	6.1 mm	0.24 in	100 ppm/°C	20 %	1 MOhms	Gull Wing	0.25 W	0.25 W	Surface Mount
